CVR Exit Device – Sargent Exit Only Solutions

Description

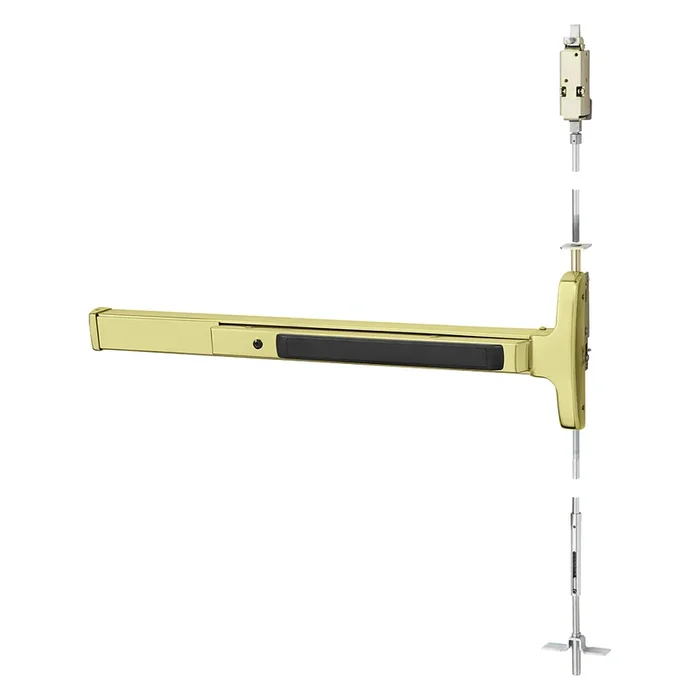

Sargent AD8410G RHR 3 CVR Exit Device – Exit Only

Sargent AD8410G RHR 3 CVR Exit Device, Exit Only offers a robust solution for environments demanding exceptional security and durability. As part of the renowned 80 Series, this Grade 1 Concealed Vertical Rod Exit Device features a narrow stile pushpad design and a 48″ device length, making it ideal for various commercial applications. The device is engineered to exceed ANSI/BHMA Grade 1 standards for cycle and strength, ensuring reliable performance throughout the lifecycle of the building. The Sargent AD8410G is equipped with hex key dogging for added convenience and is compatible with doors made of hollow metal with a thickness ranging from 1-3/4″ to 2-1/4″. It supports door widths from 43″ to 48″ and offers a polished brass finish that enhances its aesthetic appeal. The device is UL Fire and Panic listed, providing peace of mind in emergency situations. With modular construction and minimal moving parts, this exit device requires little maintenance while delivering unmatched security. The 8400 Series also offers various options for unique applications, including delayed egress and electric latch retraction. Choose the Sargent AD8410G for a reliable exit solution that combines strength, style, and functionality.

CVR Exit Device, Exit Only

Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, 48″ Device, Exit Only, Hex Key Dogging, Bright Brass Finish, Right Hand Reverse

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.

The most reliable exit device on the market.

The 8400 Series is designed for narrow stile applications and is UL Fire and Panic lsited. This series is available in several finishes.

• Door Types Hollow metal, 1-3/4″ (44 mm) minimum thickness. For doors over 1-3/4″ to 2-1/4″ thick, specify thickness and order as 31- 1-3/4″ (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8″ (35mm) square
• Rail sizes as Rails are available in 4 sizes, use door width to determine size needed. determined by Rails will be factory cut to size, if door width is supplied door width • E Rail for 24″ to 32″ door widths • F Rail for 33″ to 36″ door widths • J Rail for 37″ to 42″ door widths • G Rail for 43″ to 48″ door widths
• Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
• Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
• Electric Options AL- Alarm BT- Beacon™ PL- SARGuide™ Photoluminescent Coated TL- SARGuide™ Illuminated Touchpad 53- LX Latchbolt Monitor 54- Outside Lever Monitoring 55- Request-to-Exit Signal – Rail Monitoring 56- Remote Latch Retraction 57- Delay Egress & Electromagnets 58- Electric Dogging 59- Electroguard – Self Contained Delayed Egress
• Mounting Fasteners Supplied standard with machine screws
• Top Bolt Stainless steel
• Device Centerline from 41″ (1041mm) for Standard Applications Finished Floor 38″ (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
• Door/Opening Height Must be specified – 120″ (3048mm) Max Door Opening
• Center Case Dimensions 8-3/8″ (213mm) x 2-5/8″ (67mm)
• Projection Pushbar Neutral – 3″ (76 mm) Pushbar Depressed – 2-1/8″ (54mm)

Attributes

Accessible: No

Ada Compliance: No

Ansi: ANSI/BHMA A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 48″

Device Type: Concealed Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 96″

Door Material: Aluminum

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 43″ to 48″

Finish: 605/US3

Finish Family: Polished Brass

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Right Hand Reverse

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Exit Only

Minimum Stile Size: 1-3/4″

Origin: USA

Pack Height: 6″

Pack Length: 51″

Pack Qty: 1.0

Pack Volume: 2295 in³

Pack Width: 7.5″

Physical Appearance: Narrow Stile Pushpad

Reversible: No

Series: 8400 Series Narrow Concealed Vertical Rod Exit Devices

Ship Weight: 15 lbs.

Strike Bottom: 640.0

Subtype: Concealed Vertical Rod Exit Devices

Top Strike: 640.0

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL10C & UL305

Unit of Measure: Each
