Description

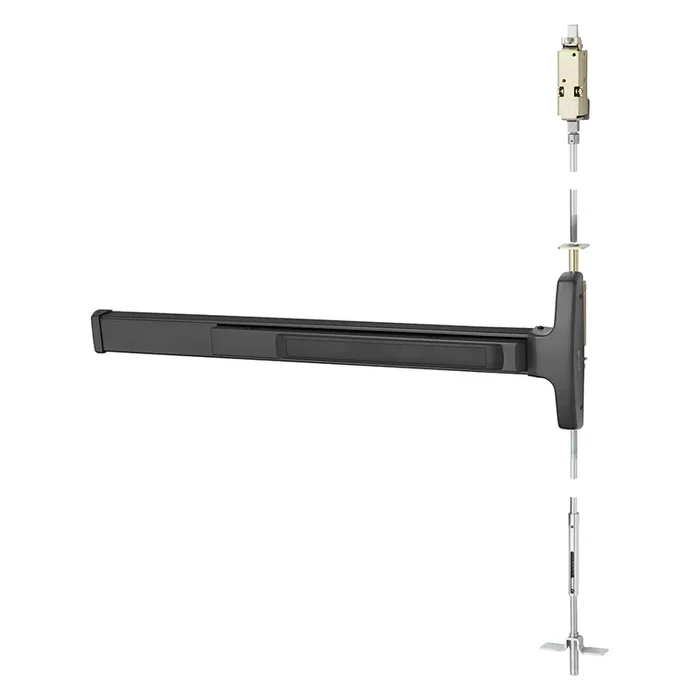

Sargent 5556-AD8410F RHR BSP CVR Exit Device – Exit Only
Sargent 5556-AD8410F RHR BSP CVR Exit Device, Exit Only is a Grade 1 concealed vertical rod exit device designed for superior security and durability in commercial settings. With its narrow stile pushpad and electric latch retraction, this 36-inch exit device ensures quick and efficient egress, making it an essential component for any building’s safety plan. This model features a black suede powder coat finish, providing not only an attractive appearance but also enhanced resistance to wear and tear. The device is designed for right-hand reverse installations, catering to specific entryway configurations. With the less dogging feature, it simplifies use while ensuring reliable operation. The Sargent 80 Series exceeds ANSI/BHMA Grade 1 standards, making it a robust choice for high-traffic areas. Modular construction with fewer moving parts contributes to its maintenance-free design, ensuring long-lasting performance. The device accommodates doors made of hollow metal, with a thickness range of 1-3/4″ to 2-1/4″ and widths from 33″ to 36″. Compliant with UL10C and UL305 standards, the 5556-AD8410F is a trusted solution for environments where safety and efficiency are paramount. Elevate your building’s security with this reliable exit device.
CVR Exit Device, Exit Only
Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, 36″ Device, Exit Only, Electric Latch Retraction, Request to Exit Switch, Less Dogging, Black Suede Powder Coat Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The most reliable exit device on the market.
The 8400 Series is designed for narrow stile applications and is UL Fire and Panic lsited. This series is available in several finishes.
- Door Types Hollow metal, 1-3/4″ (44 mm) minimum thickness. For doors over 1-3/4″ to 2-1/4″ thick, specify thickness and order as 31- 1-3/4″ (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8″ (35mm) square
- Rail sizes as Rails are available in 4 sizes, use door width to determine size needed. determined by Rails will be factory cut to size, if door width is supplied door width • E Rail for 24″ to 32″ door widths • F Rail for 33″ to 36″ door widths • J Rail for 37″ to 42″ door widths • G Rail for 43″ to 48″ door widths
- Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
- Electric Options AL- Alarm BT- Beacon™ PL- SARGuide™ Photoluminescent Coated TL- SARGuide™ Illuminated Touchpad 53- LX Latchbolt Monitor 54- Outside Lever Monitoring 55- Request-to-Exit Signal – Rail Monitoring 56- Remote Latch Retraction 57- Delay Egress & Electromagnets 58- Electric Dogging 59- Electroguard – Self Contained Delayed Egress
- Mounting Fasteners Supplied standard with machine screws
- Top Bolt Stainless steel
- Device Centerline from 41″ (1041mm) for Standard Applications Finished Floor 38″ (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
- Door/Opening Height Must be specified – 120″ (3048mm) Max Door Opening
- Center Case Dimensions 8-3/8″ (213mm) x 2-5/8″ (67mm)
- Projection Pushbar Neutral – 3″ (76 mm) Pushbar Depressed – 2-1/8″ (54mm)
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Less Dogging
Door Height: 96″
Door Material: Aluminum
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 33″ to 36″
Electric Options: Electric Latch Retraction
Finish: BSP
Finish Family: Black
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only
Minimum Stile Size: 1-3/4″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Narrow Stile Pushpad
Reversible: No
Series: 8400 Series Narrow Concealed Vertical Rod Exit Devices
Ship Weight: 15 lbs.
Strike Bottom: 640.0
Subtype: Concealed Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 640.0
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
Resources
- 16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructions
- 43-Flush End Cap Rail Cutting Installation Instructions
- 55-Signal Switch for 80 Series Installation Instructions
- 56-Electric Latch Retraction Exit Device Sell Sheet
- 565 & 665 Metal End Cap Kit Installation Instructions
- 57-Delayed Action 80 Series Exit Device Installation Instructions
- 57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installation
- 59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructions
- 80 Series Brochure
- 816 Cylinder Dogging Kit Parts List
- AD-8400, MD-8400& 12-MD-8400Series Concealed Vertical Rod Exit Device Installation Instructions
- AL- Alarmed Exit Device Installation Instructions
- Basic Fundamentals – Exit Devices
- Electric Dogging for 80 Series Installation Instructions
- Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructions
- Windstorm Solutions – Exit Devices
