CVR Exit Device – Exit Only 4′ by Falcon

Description

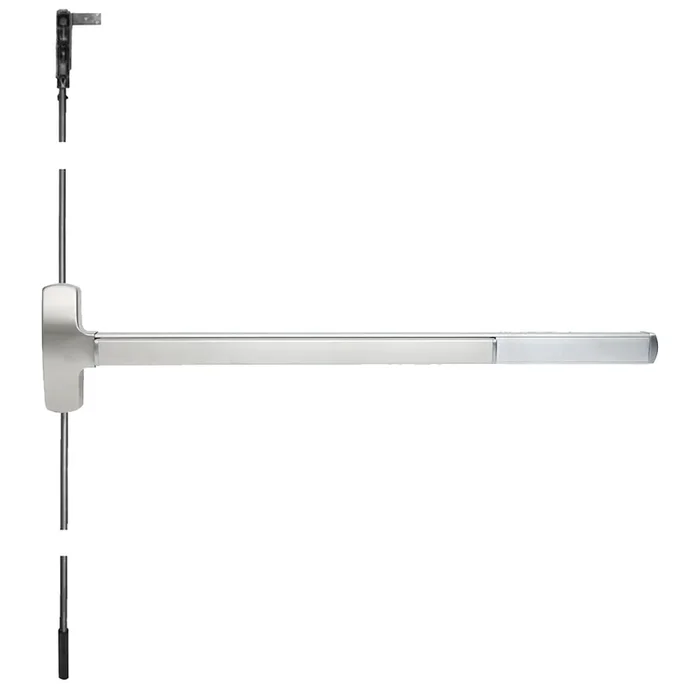

Falcon Lock F-25-C-EO 4 32D CVR Exit Device, 4′ Exit Only

Falcon Lock F-25-C-EO 4 32D CVR Exit Device is a Grade 1 concealed vertical rod exit bar designed for superior performance and security. With a 48-inch fire-rated device suitable for 84-inch doors, this exit-only mechanism ensures safety and compliance without sacrificing style. The satin stainless steel finish offers a sleek, modern appearance that integrates seamlessly into any environment. This exit device features a wide stile pushpad for ergonomic operation and a patented center slide mechanism that allows for easy rod adjustments in the field. The concealed vertical rods not only enhance the strength of the door but also maintain an aesthetically pleasing look. With less trim and less dogging, this device is ideal for high-traffic applications in offices, churches, hospitality venues, retail spaces, education facilities, and healthcare settings. The Falcon F-25-C-EO accommodates a variety of door materials, including wood and metal, and can be field-reversed for added flexibility. Its robust design ensures it stands up to frequent use, making it a reliable choice for both new constructions and retrofits. Trust in Falcon’s quality and durability to meet your exit device needs while enhancing overall building safety.

CVR Exit Device, Exit Only 4′

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48″ Fire Rated Device, 84″ Door Height, Exit Only Function, Less Trim, Less Dogging, Satin Stainless Steel Finish, Field Reversible

Concealed vertical rods add strength to the door, while maintaining an attractive appearance. The Falcon 25-C Series concealed vertical rod device offers great value, clean styling and the security benefits of two-point latching. Falcon’s patented center slide mechanism allows easy rod adjustment in the field.

Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.

A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.

Features:

• Maximum flexibility in a variety of applications
• Wide range of features and options
• Patent pending deadlocking technology

Applications:

• Frequent traffic
• Offices, churches, hospitality, retail, education, healthcare
• Interior, exterior, new construction, retro-fit

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3-2001

Base Material: Stainless Steel

Commercial Residential: Commercial

Device Length: 48″

Device Type: Concealed Vertical Rod

Dogging Options: Less Dogging

Door Height: 84″

Door Material: Wood or Metal

Door Thickness: 1-3/4″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: Yes {Variable}

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Mechanical Function: Exit Only

Minimum Stile Size: 4″ (6-1/2″ for Wood Doors)

Pack Qty: 1

Pbs Options: 40135713

Physical Appearance: Wide Stile Pushpad

Reversible: Yes

Series: 25 Series Exit Devices

Strike Bottom: 2130

Subtype: Concealed Vertical Rod Exit Devices

Top Strike: 4188

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: “A” Label (3 hr.); 4’0″ x 10’0″ Single Doors; 8’0″ x 10’0″ Pair of Doors (F-25-M x F-25-V or F-25-C).

Resources

• 19, 24, 25 and XX Series Exit Devices Service Manual
• 24 Series / 25 Series Sell Sheet
• 25 Series Exit Devices Cut Sheet
• 25-C Installation Instructions
• 25-M Installation Instructions
• 25-R Installation Instructions
• 25-V Installation Instructions
• 25-WDC Installation Instructions
• 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
• Falcon Motorized Electric Latch Retraction Kit Data Sheet
• Video: Falcon 25R Rim Exit Device Installation
• Von Duprin Finishes Chart
