Description

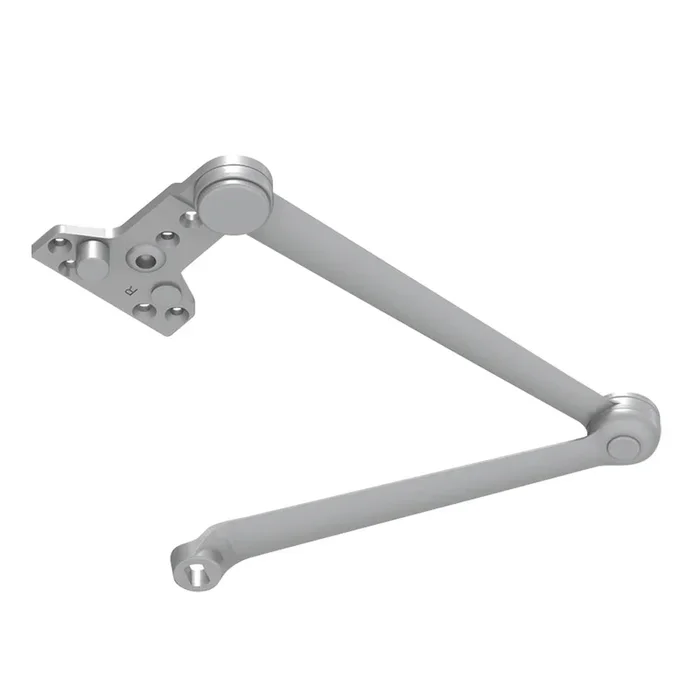

LCN 4040XP-3077CNS 652 Cush-N-Stop Arm US26D
LCN 4040XP-3077CNS 652 Cush-N-Stop Arm US26D is engineered for exceptional durability and versatility, making it the ideal choice for high-traffic environments. This heavy-duty door closer features a solid forged steel main arm and forearm with a stop in the soffit shoe, finished in a sleek satin chrome that complements any commercial setting. Designed to withstand the rigors of institutional use, the LCN 4040XP sets new benchmarks in reliability and performance. Its robust construction includes a 3/4″ journal diameter pinion and the widest bearing ever at 5/8″, ensuring enhanced load capacity and longevity. The innovative V-shield™ seal extends the life of the closer by an impressive 20%, while the double heat-treated steel pinion and all-weather fluid make it suitable for diverse conditions. Installation is straightforward with LCN® Fast™ Power Adjust, allowing for quick and precise setup. This non-handed closer is adaptable for both right and left swinging doors and can be installed in various configurations: hinge side, top jamb, or parallel arm. With a 30-year limited warranty and compliance with ADA requirements, the LCN 4040XP-3077CNS is a smart investment for any commercial application.
Cush-N-Stop Arm US26D
Cush Arm, Solid Forged Steel Main Arm and Forearm with Stop in Soffit Shoe, Satin Chrome Finish, Non-Handed
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: USA
Finish: 626/US26D
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Parallel Arm
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Stop: Dead Stop
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
