Richelieu TSFH16 CS FH Recessed Ceiling Track Instructions
Richelieu TSFH16 CS FH Recessed Ceiling Track offers a streamlined solution for your sliding door needs, blending functionality with a sleek aesthetic. Designed specifically for doors weighing up to 500 lb (227 kg), this aluminum track ensures durability and reliability in heavy-duty applications. The track features side fins that accommodate ceiling boards with thicknesses ranging from 1/2 in (12.7 mm) to 3/4 in (19.05 mm), allowing for a seamless, concealed installation that enhances the overall look of your space. Measuring 72 in in length and 1 27/64 in in height, the TSFH16 is compatible with the M6, M8, and SofStop hardware series, making it a versatile choice for various projects. Its anodized aluminum finish not only provides a modern touch but can also be painted to match your ceiling color, ensuring a cohesive design. With pre-drilled mounting holes, installation is straightforward, while the upper roller position and ceiling mount design facilitate smooth, straight sliding door movement. This track supports single sliding doors with a maximum width of 38 in, perfect for standard access doors. Elevate your architectural projects with the Richelieu TSFH16 CS FH Recessed Ceiling Track, where performance meets elegance.

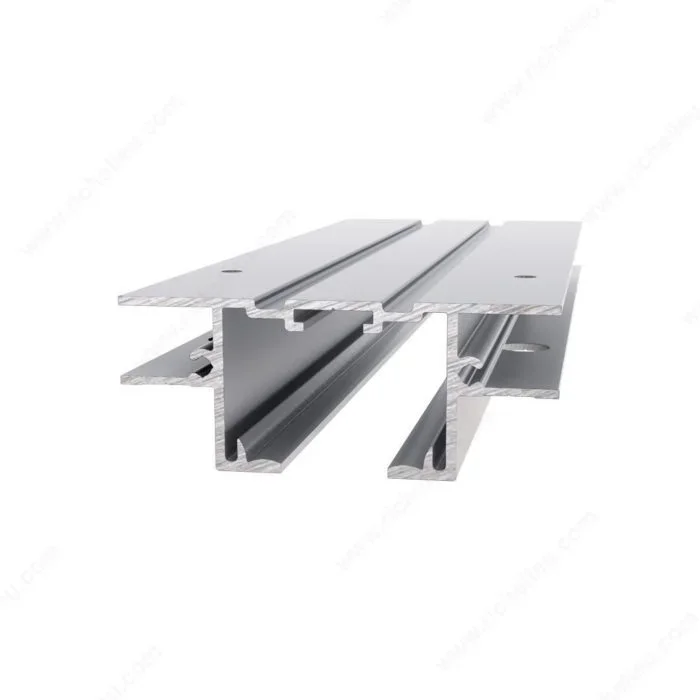

CS FH Recessed Ceiling Track
The CS FH Recessed Ceiling Track is a specialized aluminum track series designed with side fins to accept various ceiling boards 1/2 in (12.7 mm) to 3/4 in (19.05 mm) thick for a concealed look.
Features:
– For doors weighing up to 500 lb (227 kg) each
– Track can be painted to match ceiling color
– Compatible with the M6, M8, and SofStop hardware series
– Pre-machined mounting holes
Attributes
Application: Standard Access Door
Brand: Cavity Sliders
Compatible with: CS Door Collection, Cavity Sliders
Detailed Door Movement: Single Sliding
Door Installation: Top Hung
Door Movement: Straight Sliding
Door Position: Inset/Inlay
Door Width: Max. 38 in
Finish: Aluminum
Length – Overall Dimensions: 72 in
Load Capacity: 500 lb
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Overall Height: 1 27/64 in
Overall Length: 72 in
Packaging Format: Bulk
Pre-drilled: Yes
Product #: TSFH16
Product Type: Track
Product number: TSFH16
Product type: Track
Product №: TSFH16
Roller Position: Upper
Running Track Fixing: Recessed
Track Finish: Anodized
Track Length: 72 in
Track Material: Anodized Aluminum
Track Mounting: Recessed
Track Type: Box Track
Track type: Box Track
Weight Capacity per Panel: 500 lb
Width: 3 35/64 in
Resources
- Instructions
- Line art
