Richelieu TSBS2135N90 CS Barn Door Track Set Instructions
Richelieu TSBS2135N90 CS BARNDOOR Track Sets are designed for superior functionality and style, accommodating various door sizes with ease. Featuring adjustable fixing brackets, these tracks can extend from 72 inches (1.82 m) to 120 inches (3.04 m), ensuring a perfect fit for your barn door installations. Choose between narrow and wide track types to suit door projections ranging from 1 5/8 inches (40 mm) to 3 1/8 inches (80 mm), supporting a maximum door thickness of 1 3/4 inches (45 mm). With a robust weight capacity of 650 lb (300 kg) for each track, these sets guarantee durable performance, making them suitable for heavy wooden doors. The sleek black finish adds a modern touch, while the machined design allows for concealed soft-close mechanisms, enhancing user experience by minimizing noise during operation. Ideal for side-mounted applications, the Richelieu CS BARNDOOR Track Sets are compatible with door widths from 24 inches to 42 inches, and they provide a height clearance of 6 13/16 inches. Whether you’re a building professional or a discerning homeowner, these tracks deliver both aesthetic appeal and practical functionality for any barn door project.

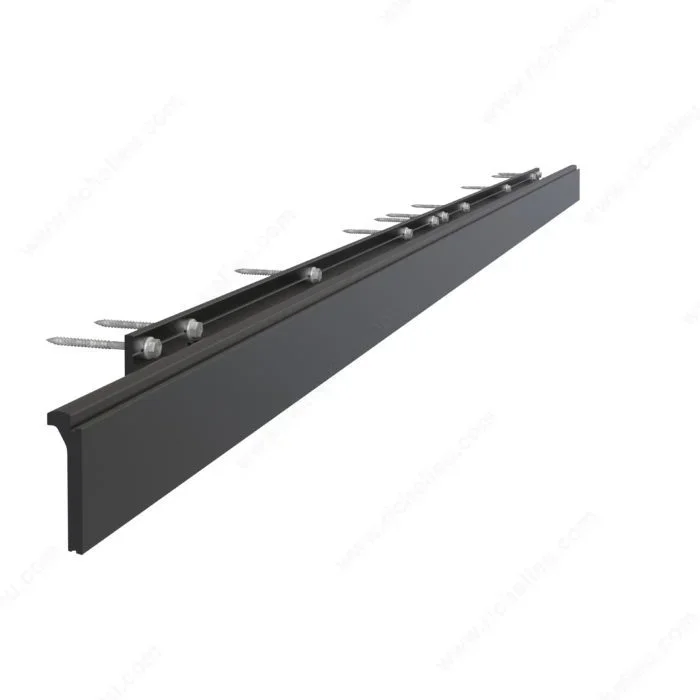

CS BARNDOOR Track Sets
The CS BARNDOOR Track Sets with adjustable fixing bracket for different lengths from 72 in (1.82 m) to 120 in (3.04 m) each. Two types to choose from, narrow or wide, for different door projections from 1 5/8 in (40 mm) to 3 1/8 in (80 mm) for a maximum door thickness of 1 3/4 in (45 mm).
Features:
– Maximum weight capacity of 650 lb (300 kg) for each track
– Black finish
– Adjustable fixing bracket for different door projections
– Narrow type track for door projections from 1 5/8 in (40 mm) to 2 3/8 in (61 mm)
– Wide type track for door projections from 2 3/8 in (62 mm) to 3 1/8 in (80 mm)
– Available in different lengths: 72 in (1.82 m), 84 in (2.13 m), 96 in (2.43 m), and 120 in (3.04 mm)
– Machined to accept concealed soft-close mechanisms at the back
Attributes
Ship via: No UPS – Common Carrier Only
Application: Barn Door
Detailed Door Movement: Barn Door
Door Height: Max. 120 in
Door Installation: Side Mount
Door Material: Wood
Door Movement: Straight Sliding
Door Projection: 1 5/8 to 2 3/8 in
Door Thickness: 1 1/4 to 1 3/4 in
Door Width: 24 to 42 in
Finish: Black (90)
Height Clearance: 173 mm
Length – Overall Dimensions: 84 in
Load Capacity: 650 lb
Overall Length: 84 in
Product #: TSBS2135N90
Product Type: Track
Product number: TSBS2135N90
Product type: Track
Product №: TSBS2135N90
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Length: 84 in
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Length
Weight Capacity per Panel: 650 lb
