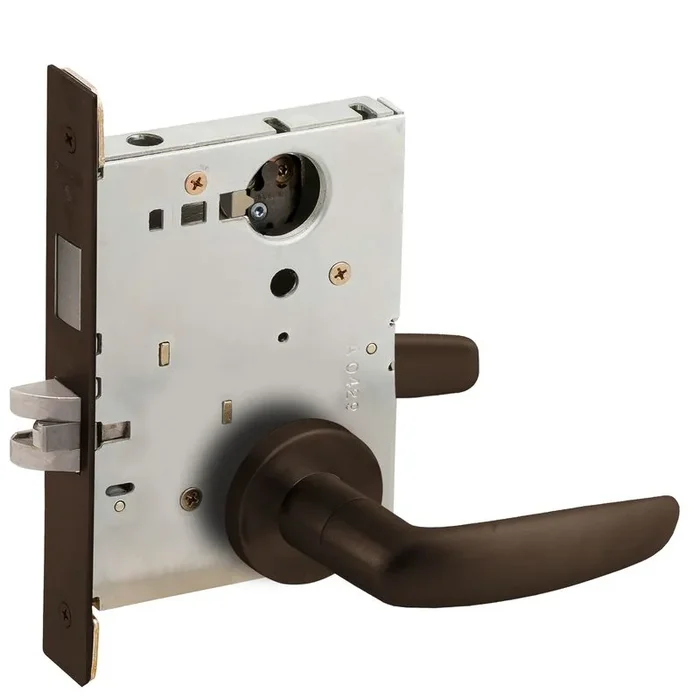

Corridor Mortise Lock Less Cylinder with 07 Lever and A Rose – Oil Rubbed Bronze Finish – Schlage Commercial

Description

Schlage L9456L07A613 Corridor Mortise Lock, 07 Lever, A Rose, Oil Rubbed Bronze Finish

Schlage Commercial L9456L07A613 Corridor Mortise Lock Less Cylinder with 07 Lever and A Rose in Oil Rubbed Bronze Finish offers a perfect blend of functionality and security for commercial spaces. Designed for corridor applications, this lock features a latchbolt that can be retracted from either side, while the deadbolt is thrown with a key or thumbturn. This unique mechanism allows the inside lever to always remain free for immediate egress, ensuring safety in high-traffic areas. Constructed to ANSI/BHMA Certified A156.13-2012 standards, the L9456L is a Commercial Grade 1 lock, providing superior durability and reliability. The lock body mortises seamlessly into the edge of doors with a thickness of 1-3/4″. It is UL Listed for 3-hour fire door applications, enhancing safety measures in critical environments. The lock features a striking oil rubbed bronze finish, which not only adds an elegant touch but also offers resistance to wear and tear. Its reversible handing allows for flexibility in installation, accommodating various door designs. The 2-1/8″ rose pairs beautifully with the 4-5/8″ lever, making it a stylish yet robust choice for any corridor setting. With a limited 10-year mechanical warranty, you can trust in the quality and longevity of Schlage’s craftsmanship.

Corridor Mortise Lock Less Cylinder with 07 Lever and A Rose Oil Rubbed Bronze Finish

For more than 90 years, Schlage has been creating the strongest and most technologically advanced security products for homes, multi-family, commercial, and institutional buildings. We have been meticulous designers, painstaking engineers, and proud craftsmen. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments–when property and personal security are at stake. In homes, public buildings, and the workplace, at the end of the day, Schlage stands for one thing: strong.

• Commercial Grade 1
• UL Listed for 3 Hour Fide Door
• Corridor – Latchbolt Retracted From Either Side, Deadbolt Thrown by Key or Thumbturn, Throwing Deadbolt Locks Outside Lever, Turning Inside Lever Retracts Deadbolt and Latchbolt and Unlocks Outside Lever, Inside Lever is Always Free for Immediate Egress,
• ANSI/BHMI Certified A156.13-2012
• Lock Body Mortises Inside the Edge of the Door

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.13-2017 Series 1000

Ansi Function: F13 – Dormitory

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Base Material: Bronze

Bolt Projection: 3/4″ Latch, 1″ Deadbolt

Bolt Protection: 3/4″ Latch, 1″ Deadbolt

Burglar Rated: No

Cam Number: L583-474

Cam Type: Schlage L

Category: Mechanical Commercial Locksets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Length: 1-1/8″

Cylinder Type: Less Cylinder

Dimension: 2-1/8″ Rose with 4-5/8″ Lever and 2-7/8″ Projection

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: Oil Rubbed Bronze

Finish Code: 613

Finish : Dark Oxidized Satin Bronze Oil Rubbed

Finish Family: Dark Bronze

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: 9456-Corridor Lock

Function Family: Corridor

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Hazardous Material: NO

Installation: Commercial

Latch Bore Diameter: 2-3/4″

Latch Faceplate Dimension: 1-1/4″ x 8″

Lever Knob Design: 07 – Lever

Leverknob Design: 07 Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 3 Years

Lock Face Size: 8″ x 1-1/4″

Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty

Material: Zinc Base

No Of Inners: 1

Order_ Qty: 1

Origin: Mexico

Pack Height: 5.63″

Pack Height 2: 5.63″

Pack Length: 10.38″

Pack Length 2: 10.38″

Pack Qty: 1

Pack Volume: 313.68 in³

Pack Volume 2: 313.68 in³

Pack Width: 5.38″

Pack Width 2: 5.38″

Pins: 6

Projection: 2-7/8″

Rose Escutcheon Design: A – Rose

Rose Number: 09-404 A 613, 09-403 A 613

Roseescutcheon Design: A Rose

Roseescutcheon Dimensions: 2-1/8″ Diameter, 13/32″ Projection

Screws: Combination

Series: L Series

Ship Weight: 6.3 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: L283-008, L283-003

Std Latch Type: Combination Latch and Bolt

Std Strike Height: 4-7/8″

Std Strike Number: 10-072 1316 613

Std Strike Type: ANSI Strike

Std Strike Width: 1-3/16″

Strike: ANSI Strike

Strike Dimension: 4-7/8″ with 1-1/4″ Lip

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4″

Subcategory: Mortise Locksets

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Ul Listing Type: UL Listed for 3 Hour Fire Door

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
