Description

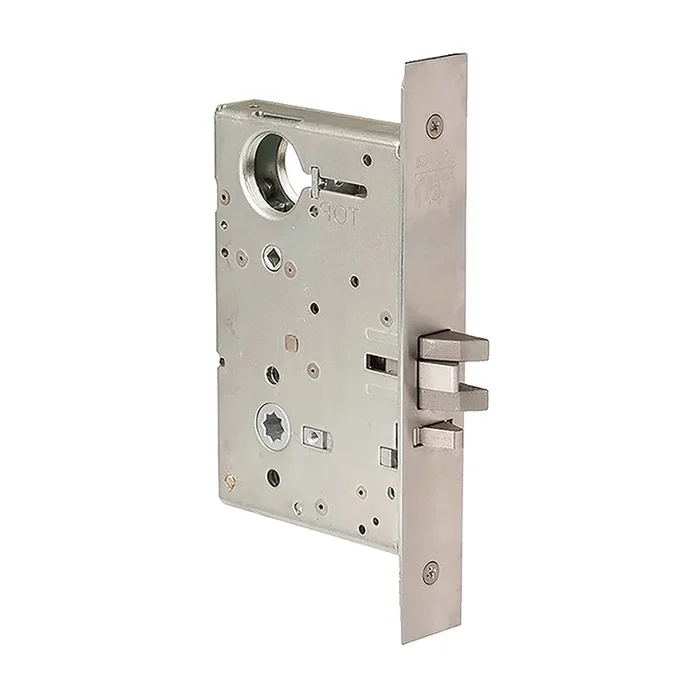

Corbin Russwin ML2057 KK 625 Storeroom Mortise Lock Body
Corbin Russwin ML2057 KK 625 Storeroom Mortise Lock Body offers a robust solution for high-traffic commercial, institutional, and industrial applications. Constructed from heavy-gauge steel, this Grade 1 mortise lock is designed to withstand the demands of environments such as offices, schools, hospitals, and hotels. Its bright chrome finish not only enhances aesthetic appeal but also ensures durability. The ML2000 Series features a patented Quick Reversible latchbolt, allowing for field re-handing without the need to disassemble the lock case. It accommodates standard door thicknesses of 1-3/4″ and has a backset of 2-3/4″, making it versatile for various door types. The lock body measures 5-7/8″ x 4″ x 15/16″, providing a sturdy foundation for security.With a 1″ stainless steel deadbolt and a 3/4″ latchbolt throw, this lock ensures reliable performance. It comes with two nickel silver keys and meets stringent federal specifications (FF-H-106C). Backed by a 10-year warranty, the Corbin Russwin ML2057 is an ideal choice for those seeking dependable and long-lasting door security solutions.
Storeroom Mortise Lock Body
Storeroom or Closet Mortise Lockbody Only,Bright Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Ansi Function: F07 – Storeroom/Exit
Application: Lockbody Only
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt
Country of origin: USA
Door Thickness: 1-3/4″
Finish: 625/US26
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 57-Storeroom or Closet
Grade: Grade 1
Handing: Field Reversible
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Qty: 1
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
