Corbin Russwin ML2060 PSM 626 Privacy Mortise Lock Instructions
Corbin Russwin ML2060 PSM 626 Privacy Mortise Lock combines robust security with user-friendly design, making it an ideal choice for high-traffic environments. This Grade 1 mortise lock is constructed from heavy-gauge steel, ensuring long-lasting durability in commercial, institutional, and industrial settings. Featuring a patented quick reversible latchbolt and a 1″ stainless steel deadbolt, it provides superior protection while accommodating various trim designs and functions. Designed for doors with a standard thickness of 1-3/4″ and a backset of 2-3/4″, the ML2060 is adaptable for different applications. Its armored front, available in wrought brass, bronze, or stainless steel, adds an extra layer of resilience. The lockset is field-reversible, allowing for easy handing adjustments without disassembly. With a fire rating of 3 hours and an Environmental Product Declaration (EPD) certification, the ML2060 meets stringent safety standards, making it suitable for offices, schools, hospitals, and hotels. The lock is also compliant with ADA regulations and comes with a 10-year limited warranty, ensuring peace of mind for building professionals and homeowners alike. Elevate your security solutions with the reliability and versatility of the Corbin Russwin ML2060 PSM Privacy Mortise Lock.
Privacy Mortise Lock

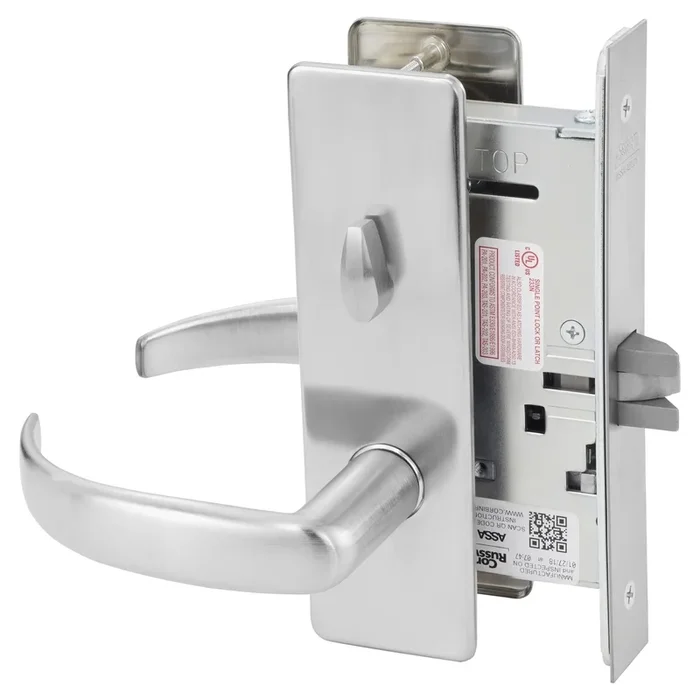

Privacy Mortise Lock, PS Lever, M Escutcheon, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F22 – Privacy
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt
Country of origin: USA
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 60-Privacy
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: PS – Princeton
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Qty: 1
Roseescutcheon Design: M – Escutcheon
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- Assa Abloy Hands-Free and Touchless Solutions Flyer
- Corbin Strikes/Kits Brochure
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Locks Cut Sheet
- ML2000VR Vandal Resistant Trim Installation Instructions
- Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructions
- Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructions
- Video: Changing the Hand on the ML20608
- Video: HPSK Push/Pull Trim Installation
- Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installation
