Description
Corbin Russwin UT5210 ESE 626 LHR Passage Lock Unit
Corbin Russwin UT5210 ESE 626 LHR Passage Unit Lock combines reliability and ease of installation, making it an ideal choice for high-traffic environments. Designed with a passage function, this lock is handed and features a sleek satin chrome finish, ensuring it complements various architectural styles. Its pre-assembled, unitized construction minimizes installation costs, as no on-site assembly is required, making it perfect for schools, universities, office buildings, hospitals, and historic sites. The UT5210 is engineered for durability, featuring a one-piece investment cast frame with machined internal parts made from steel, bronze, and stainless steel, all zinc dichromated for corrosion resistance. The 3/4″ radius latchbolt is thoughtfully designed to wedge more tightly into the strike during tampering while adhering to ADA force-to-latch requirements. The lock also includes an auxiliary latch that deadlocks the latchbolt, preventing unauthorized manipulation when the door is closed. With a standard backset of 2-3/4″ and a door thickness of 1-3/4″, the UT5210 is versatile for different applications. It meets federal specifications FF-H-106C and carries a one-year limited warranty, ensuring peace of mind for building professionals and homeowners alike.
Passage Unit Lock

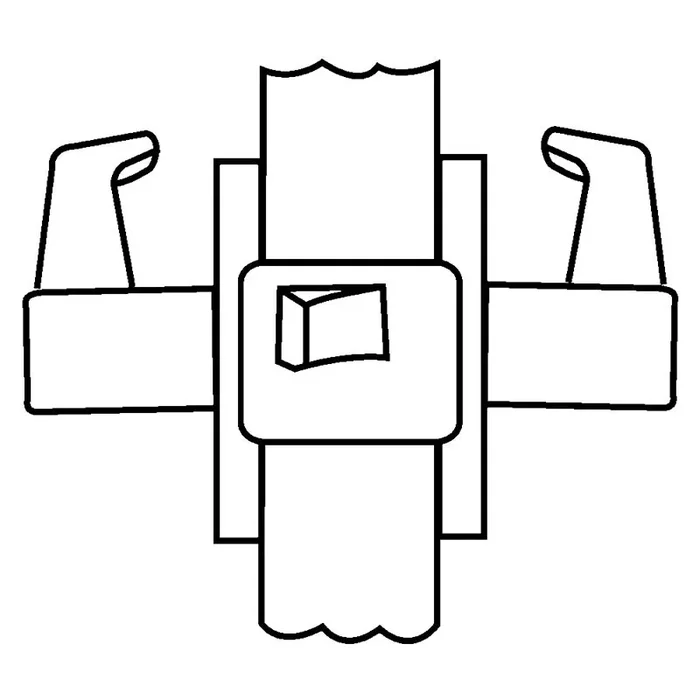

Passage Function, Handed,Satin Chrome
ApplicationsThis lock has provided decades ofservice in some of the world’s mostprestigious buildings. Its pre-assembled,unitized construction is ideal for projectswhere installation costs are to beminimized. Typical high-traffic commercial,institutional and industrial applicationsinclude: Schools and universities Office buildings Hospitals Municipal buildings Historic buildingsAdvantages Factory pre-assembled for quick,economical, one-piece installation: nojob site assembly required 3/4″ radius latchbolt, designed towedge more tightly into the strikewhen tampered with, while meeting allADA force-to-latch requirements.
Factory pre-assembled for quick, economical, one-piece installation.
The UT5200lock has provided decades of service in some of the world’s most prestigious buildings. Its pre-assembled, unitized construction is ideal for projects where installation costs are to be minimized.
- Handing Specify hand. All functions are handed.
- Door Thickness 1-3/4″ (44mm) only.
- Backset 2-3/4″ (70mm) only.
- Lock Chassis One-piece investment cast frame. Machined internal parts of steel, bronze and stainless steel. Zinc dichromated for corrosion resistance.
- Front Beveled 1/8″ (3mm) in 2″ (51mm).
- Latchbolt Brass, chrome plated, 3/4″ (19mm) throw pivoted, swinging type.
- Auxiliary Latch Deadlocks latchbolt, preventing manipulation when door is closed.
- Strike Wrought brass or bronze, ANSI strike with nylon adjusting screw, standard. 4-7/8″ (124mm) x 1-1/4″ (32mm) x 1-1/4″ (32mm) lip to center. Optional strikes and lip lengths available;
- Cylinder Brass, 6-pin, L4 keyway, 0-bitted standard.
- Keys Two nickel silver standard.
- Federal Meets FF-H-106C.
- UL-cUL All locks listed for A label and lesser class doors, single or pair, maximum door size 3’8″ (111.7cm) x 7’2″(218.4cm) All locksets also listed for B label
- Warranty One-year limited.
Attributes
Base Material: Brass or Bronze
Bolt Projection: 3/4 In.
Burglar Rated: No
Door Thickness: 1-3/4 In.
Dust Box: None
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 51-Entrance or Office
Leverknob Design: ES – Lever
Limited Warranty: 1 Year
Roseescutcheon Design: E – Rose
Screws: Combination
Series: UT5200 Series Unit Locks
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Guarded Latch
Std Strike Height: 4-7/8 In.
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Unit Lock
Type: Locks, Cylinders, Cores, Keyblanks
Resources
- UT5200 Series Parts Manual
- UT5200 Series Unit Locks Cut Sheet
- UT5200 Unit Lock (auxiliary) Catalog
