Corbin Russwin Inside Indicator with Thumbturn – Satin Chrome Mortise Lock Set

Description

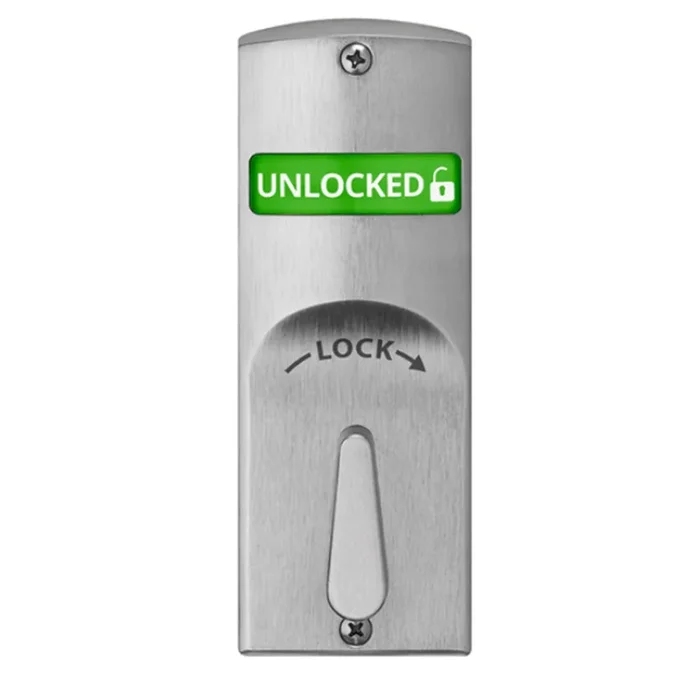

Corbin Russwin ML194 EMB 134 RH 626 V01 Inside Indicator Thumbturn, Green/Red, RH/RHR, Reversible, Satin Chrome

Corbin Russwin ML194 EMB 134 RH 626 V01 Inside Indicator with Thumbturn offers an efficient solution for monitoring door status with clarity and style. This innovative indicator features a bright green and red display that clearly indicates whether the door is locked or unlocked, complemented by a directional arrow engraving for enhanced usability. Designed for right-handed doors, it boasts a satin chrome finish that not only provides an aesthetic appeal but also ensures durability. The ML194 model is versatile, compatible with sectional or escutcheon trim and can be installed inside, outside, or on both sides of the door. Its viewing window is 25% larger than competing models, making it easier to see the status from a distance. The patent-pending curved design allows for visibility from multiple angles, reducing the chance of misreading the lock status.This product is also retrofittable for existing applications, making upgrades straightforward and cost-effective. With a door thickness of 1-3/4″ and a thumbturn function, the Corbin Russwin ML194 is an essential addition to any panic device trim installation, ensuring safety and convenience in high-traffic areas.

Inside Indicator with Thumbturn, with Direction Arrow Locked/Unlocked, Green/Red, RH/RHR Right Hand, Reversible, 626/US26D Satin Chrome

Notice: The info below is not item specific.

Indicator for Sectional Trim with Thumbturn, Interior displays “Unlocked / Locked” in Green & Red, “LOCK” with Directional Arrow Engraving on Interior, Right Hand, Satin Chrome Finish Satin Chrome

Features:

• Inside, outside or both sides of the door
• Sectional or escutcheon trim
• Available with 27 different functions – including thumbturn functions
• Viewing window 25% larger than competition
• Patent pending curved design for viewing at multiple angles
• Window located prominently above the cylinder
• Highly reflective viewing window for increased safety
• Optional directional engraving available – must specify handing
• Retrofittable for existing applications

Attributes

Alternate Codes: ML194 EMB 134 RH 626 V01, ML194EMB134RH626V01

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Door Application: Panic Device Trims

Door Indicators: Interior Engraving – Lock and Directional Arrow, Interior Indicator – Green/Red, Interior Indicator – Locked/Unlocked

Door Thickness: 1-3/4″

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Thumbturn

Handing: Right Handed
