Description

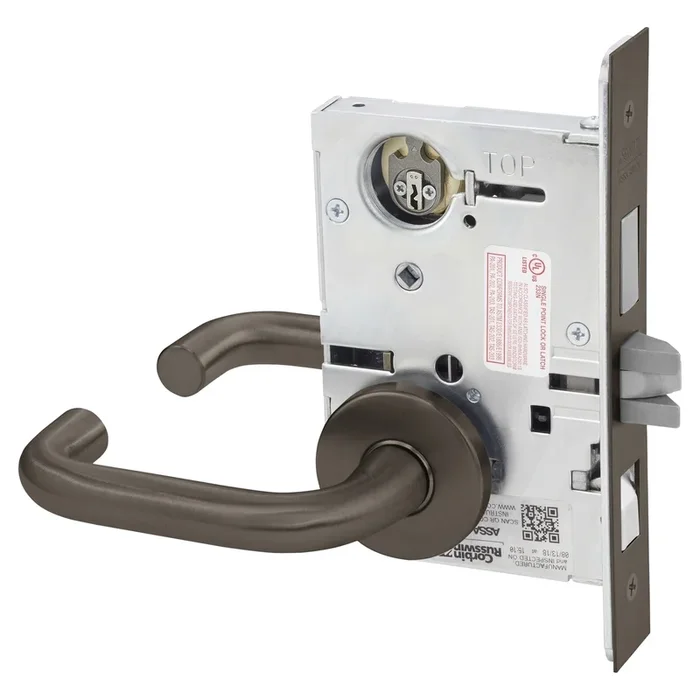

Corbin Russwin ML2048 LWA 613 LC Mortise Lock for Entrance
Corbin Russwin ML2048 LWA 613 LC Entrance Mortise Lock is a robust solution engineered for high-traffic environments, making it ideal for commercial, institutional, industrial, and government applications. This Grade 1 mortise lock is constructed from heavy-gauge steel, ensuring long-lasting durability. The patented Quick Reversible latchbolt allows for easy handing adjustments without the need for disassembly, enhancing its versatility. Designed for standard door thicknesses of 1-3/4 inches, the ML2048 features a 2-3/4 inch backset and a lockcase measuring 5-7/8 inches x 4 inches x 15/16 inches, with an optional non-ferrous lockcase for added corrosion resistance. The lock also includes a 1-inch stainless steel deadbolt and a mechanical latchbolt with an anti-friction insert, providing reliable security. With a 10-year warranty and a variety of trim designs, this mortise lock suits various environments, from offices and schools to hospitals and hotels. The lock is ADA compliant and meets federal specifications, making it accessible and reliable. Finished in oil-rubbed bronze, the ML2048 combines functionality with an attractive aesthetic, ensuring it meets both practical and design needs.
Entrance Mortise Lock
Entrance or Apartment Mortise Lock, LW Lever, A Rose, Oil Rubbed Bronze
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F08 – Front Door
Application: Complete Lock
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Country of origin: USA
Door Thickness: 1-3/4″
Finish: 613/US10B
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 48-Entrance or Apartment
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: LW – Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Qty: 1
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- Assa Abloy Hands-Free and Touchless Solutions Flyer
- Corbin Strikes/Kits Brochure
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Locks Cut Sheet
- ML2000VR Vandal Resistant Trim Installation Instructions
- Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructions
- Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructions
- Video: Changing the Hand on the ML20608
- Video: HPSK Push/Pull Trim Installation
- Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installation
