Description

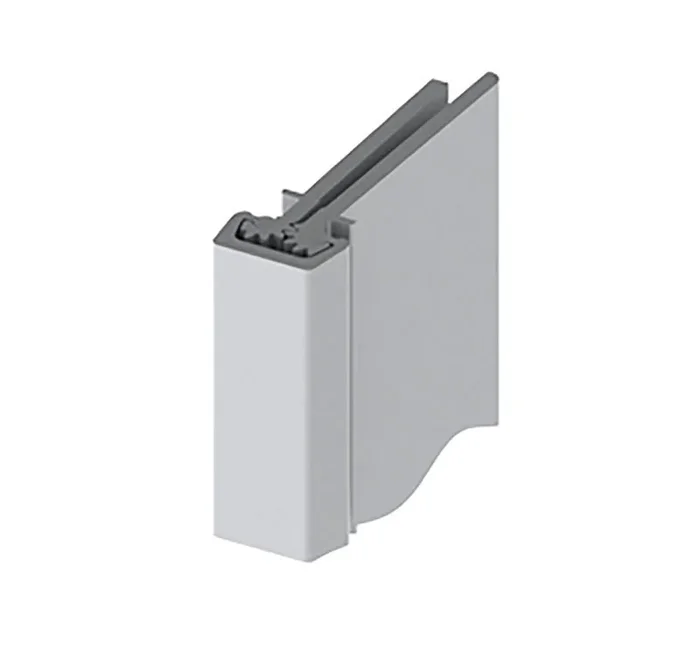

Hager 780-111 83 DBA EPT LH Continuous Geared Hinge, 83″
Hager 780-111 83 DBA EPT LH Continuous Geared Hinge is engineered for durability and versatility in commercial applications. This left-handed, 83-inch concealed leaf hinge is specifically designed to accommodate Von Duprin Electronic Power Transfer preparations, enhancing access control systems seamlessly. Constructed from anodized aluminum with a dark bronze finish, it not only offers a sleek aesthetic but also meets rigorous ANSI/BHMA A156.26 C standards for performance and safety. The cutout design of the hinge eliminates the need for reinforcement plates in most installations, making it ideal for both new construction and restoration projects. It is suitable for a variety of applications, including widethrow, electrically modified power transfer, and fire-rated spring hinges. Rated for three hours with metal and 90 minutes with wood composite, this hinge ensures compliance with critical fire safety standards. With a Grade 1 rating, the Hager 780-111 is built to withstand high-frequency use in demanding environments. Its continuous gear bearing type provides smooth operation and reliability. Backed by a limited one-year warranty, this hinge is a smart choice for professionals seeking quality and longevity in door hardware solutions.
CONTINUOUS GEARED HINGE, 83″”
Concealed Leaf Continuous Geared Hinge, Left-Handed, 83″, Von Duprin Electronic Power Transfer Prep, Dark Bronze Anodized Aluminum Finish
All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.
Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.
Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at . Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
Attributes
Manufacturer surcharge: 8.75%
Application: Von Duprin EPT Prep
Base Material: Aluminum
Bearing Type: Continuous Gear
Commercial Residential: Commercial
Finish: 313
Finish Family: Dark Bronze
Fire Rated: 3 Hours Metal, 90 Min. Wood Composite (with Studs)
Fire Rating: 3 Hours Metal, 90 Min. Wood Composite (with Studs)
Grade: Grade 1
Height: 83″
Hinge Type: Continuous Hinge, Concealed Leaf
Installation: Commercial
Limited Warranty: 1 Year
Option Prep: EPT Von Duprin
Pack Qty: 1
Prep Location: 28-7/16″ Top to Center
Series: Roton Continuous Geared Hinges
Subtype: Continuous Hinges
Type: Hinges and Pivots
Unit of Measure: Each
Weight: Standard Duty
Resources
- 780-157HD 119 CLR Template
- Roton 1200-600XHD, 1200-650XHD Instruction Sheet
- Roton 500-048 Instruction Sheet
- Roton 500-200 Instruction Sheet
- Roton 500-220 Instruction Sheet
- Roton 750-134 Instruction Sheet
- Roton 750-138 Instruction Sheet
- Roton 78-257HD Instruction Sheet
- Roton 780-041 Instruction Sheet
- Roton 780-053, 780-054 Instruction Sheet
- Roton 780-110 Instruction Sheet
- Roton 780-111, 780-112, 780-226, 780-235 Instruction Sheet
- Roton 780-155 Instruction Sheet
- Roton 780-211 Instruction Sheet
- Roton 780-213 Instruction Sheet
- Roton 780-259 Instruction Sheet
- Roton 780300HD Instruction Sheet
- Roton Continuous Geared Hinge Brochure
- Roton Continuous Geared Hinges Cut Sheet
- Roton Electrical Modifications Sheet
- Roton Hinge UL Fire-Rated Studs – 780-041 Instruction Sheet
- Roton Hinge UL Fire-Rated Studs – 780-111, -112, -124, -224, -226, -235 Instruction Sheet
- Roton Hinge w/ Electric Modifications – Concealed ETW, Full Surface Instruction Sheet
- Roton Hinge w/ Electric Modifications – ETW & EMN Instruction Sheet
- Roton Hinge w/ Electric Modifications – Removable ETW Instruction Sheet
- SS Continuous Hinge w/ Electric Modifications – ETW E1S Instruction Sheet
