Description

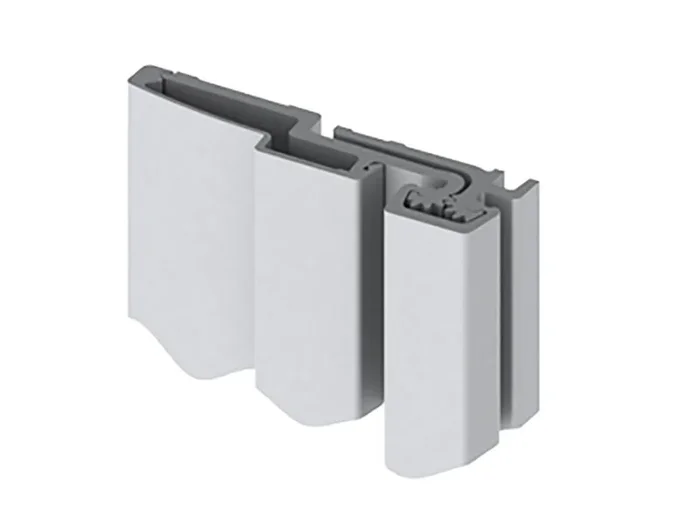

Hager 780-210 83 CLR Continuous Geared Hinge, 83″
Hager 780-210 83 CLR Continuous Geared Hinge is a top-quality full surface hinge designed for commercial applications. Measuring 83 inches in height and finished in a sleek satin aluminum clear anodized, this hinge combines durability with contemporary aesthetics. Its cutout design allows for seamless installation, eliminating the need for reinforcement plates in most door and frame types, thus simplifying both new construction and renovation projects. Built to accommodate a range of applications, the 780-210 is perfect for wide throw doors, electrically modified power transfer, and fire-rated spring hinges. It meets strict ANSI/BHMA A156.26 C standards, ensuring high reliability and performance. The hinge is rated for 3 hours for metal doors and 90 minutes for wood composite doors with studs, making it suitable for various safety requirements. Constructed from aluminum, the hinge features a continuous gear bearing type that guarantees smooth, consistent movement. With a Grade 1 rating, it is designed for high-frequency use in demanding environments. Hager backs this product with a lifetime warranty, underscoring its commitment to quality and customer satisfaction. Whether you’re a building professional or a knowledgeable homeowner, the Hager 780-210 hinge is an excellent choice for your door hardware needs.
CONTINUOUS GEARED HINGE, 83″”
Full Surface Continuous Geared Hinge, 83″, Satin Aluminum Clear Anodized Finish
All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.
Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.
Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at . Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
Attributes
Manufacturer surcharge: 8.75%
Base Material: Aluminum
Bearing Type: Continuous Gear
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: 3 Hours Metal, 90 Min. Wood Composite (with Studs)
Fire Rating: 3 Hours Metal, 90 Min. Wood Composite (with Studs)
Grade: Grade 1
Height: 83″
Hinge Type: Continuous Hinge, Full Surface
Installation: Commercial
Limited Warranty: Lifetime
Pack Height: 3″
Pack Length: 87.5″
Pack Qty: 1
Pack Width: 3.5″
Series: Roton Continuous Geared Hinges
Ship Weight: 10 lbs.
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Subtype: Continuous Hinges
Type: Hinges and Pivots
Unit of Measure: Each
Upc: 41359480501
Weight: Standard Duty
