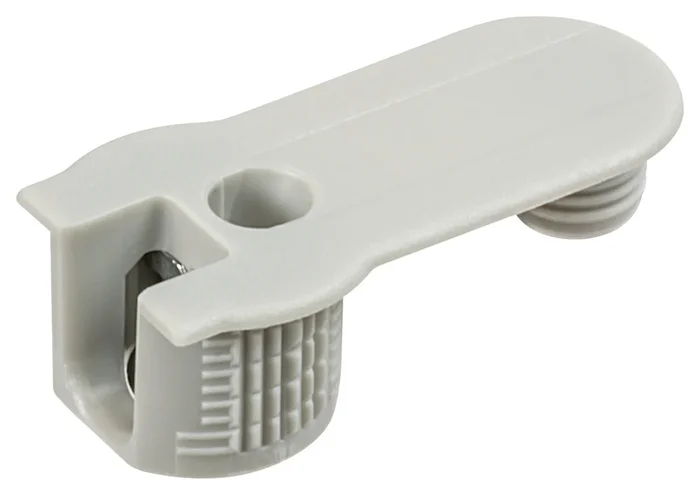

Hafele 263.12.505 Rafix 20 Connector Housing with Dowel, Plastic

Hafele 263.12.505 Connector Housing is a key component of the Rafix 20 system, designed specifically for seamless assembly in furniture construction. Constructed from durable plastic with a zinc alloy tightening element, this connector housing ensures robust and reliable connections for wood thicknesses up to 19 mm. Its gray finish is not only aesthetically pleasing but also aligns closely with RAL color standards, providing versatility in various design applications. With an overall dimension of 9.50 mm and a drill hole diameter of 20.00 mm, this connector is engineered to facilitate easy installation. The drilling depth of 14.2 mm, with a slight tolerance for precision, allows for optimal fit and stability. Featuring a PZ2 cross slot drive, it simplifies the fastening process while ensuring a secure hold. The design incorporates a rim and a tightening element, along with a dowel, enhancing the structural integrity of your furniture pieces. Notably, this connector housing is devoid of a ridge, allowing for a clean and streamlined assembly. For professionals seeking flexibility, other color options are available upon request. The Hafele 263.12.505 Connector Housing is an excellent choice for those aiming for quality and efficiency in their woodworking projects.

Connector Housing, Rafix 20 system with dowel, plastic

With tightening element, For wood thickness 19 mm, gray

The colours shown are similar to RAL colours and are as close as possible to the actual standard colour. The colour shades may vary slightly due to production reasons.

Attributes

Color/finish: Gray

Dim. A: 9.50 mm

Drill hole Ø housing: 20.00 mm

Drilling depth: 14.2 mm +0.2 mm

Drive: PZ2 cross slot

Features: with rim, with tightening element, with dowel, without ridge

For wood thickness: ≤19 mm

Material: Plastic, Tightening element: Zinc alloy

Order reference: Other colors available on request.

Ridge: without
