Description

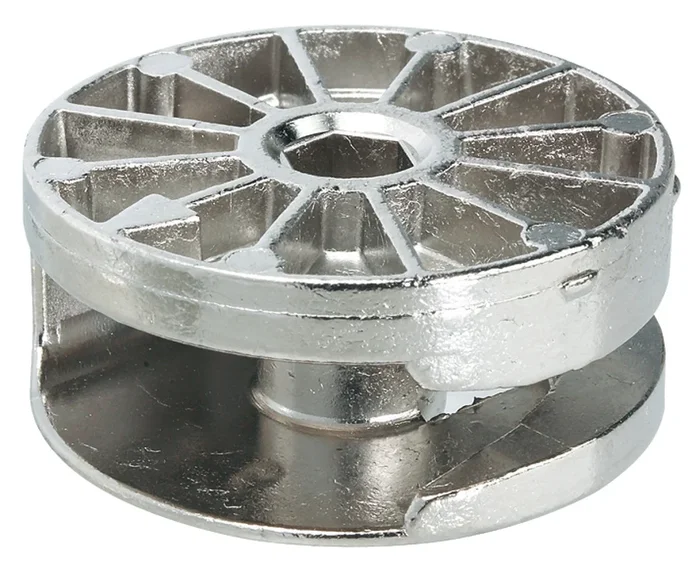

Hafele 262.87.703 Maxifix Connector Housing
Hafele 262.87.703 Connector Housing, Maxifix System offers an innovative solution for creating robust connections in wood compounds. Designed with a hexagon socket and finished in durable nickel plating, this cam and bolt connector ensures extremely strong connections that can withstand heavy loads. Suitable for materials with a minimum thickness of 19 mm (3/4″), it features a long travel distance for enhanced pull strength, making it ideal for applications requiring stability under pressure. The quick tightening action of the connector is particularly noteworthy, requiring only a 3/4 turn to secure. It can be operated using either a Pozi #3 or 6 mm hex key, and its compatibility with power tools allows for rapid assembly. Additionally, a locking device on the outer cam provides extra security by preventing loosening over time. With a drilling depth of 15.5 mm and a drill hole diameter for the housing set at 35.00 mm, installation is straightforward. Crafted from sturdy zinc alloy, the Hafele 262.87.703 is designed for connecting bolts with a 9 mm drill hole diameter. This connector housing is an essential component for building professionals and knowledgeable homeowners seeking reliable, high-performance fastening solutions.
Connector Housing, Maxifix System
With hexagon socket, Nickel-plated
Cam and bolt connector for extremely strong connections of wood compounds Minimum material thickness: 19 mm (3/4″) Long travel distance (= a lot of pull) Quick tightening action, only 3/4 turn needed Can be used with either Pozi #3 or 6 mm hex key Power tools can be used for fast tightening Locking device on the outside of the cam is an additional feature that prevents loosening Quick tightening action, turn to 8 o’clock position
Attributes
Area of application: For extremely stable connections that are subjected to heavy loads
Color/finish: nickel plated
Dim. A: 9.50 mm
Drill hole Ø housing: 35.00 mm
Drilling depth: 15.5 mm
Drive: Hexagon socket SW6
For wood thickness: ≥19 mm
Installation: Drilling distance A: distance between middle of bolt hole and top edge corresponds to half of the wood thickness (with 19 mm wood thickness). Drilling dimension B: distance from middle of Maxifix housing to front edge of lateral element (35 or 55 mm), depending on choice of connecting bolt.
Material: Zinc alloy
Suitable for: Connecting bolt with drill hole Ø 9 mm.
Resources
- CAD data
- Certificate
- LGA quality certificate 1012 for Minifix, Maxifix, Rafix, TAB-V furniture connectors
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 11.28
