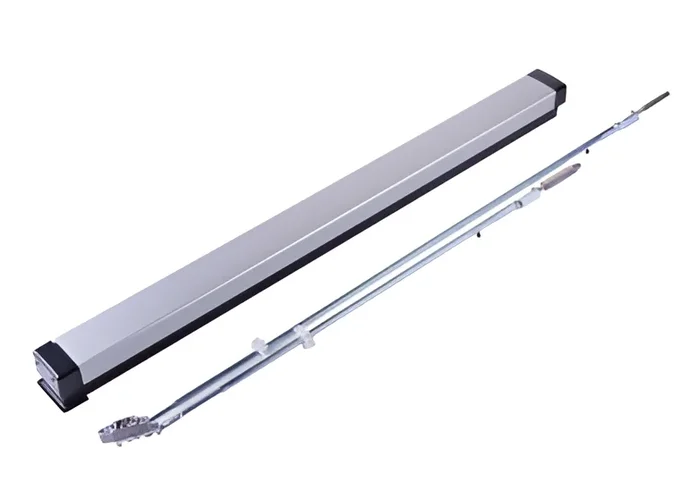

Concealed Vertical Rod Exit Device (CVR) Motor Latch Retraction – Adams Rite

Description

Adams Rite 8611MLR-48-24V CVR Motor Latch Retraction Exit Device for Narrow/Wide Stile Aluminum Doors

Adams Rite Manufacturing 8611MLR-48-24V Concealed Vertical Rod Exit Device (CVR) offers a robust solution for narrow stile aluminum doors requiring reliable emergency egress. Designed for doors measuring 36 inches by 96 inches, this exit device features motor latch retraction, ensuring a seamless exit during emergencies while enhancing overall security. The patented top latching mechanism interlocks the door to the frame, providing a two-point locking system for heightened safety. Constructed with durable materials, the pushbar is made of extruded aluminum and clad or anodized in a clear finish (628/US28), ensuring longevity and a professional appearance. Its adjustable steel rods are protected by contoured covers, making installation straightforward and reducing the risk of damage. This non-handed device accommodates a variety of door configurations, including minimum 2-inch stile widths and standard door thicknesses of 1-3/4 inches up to 2-1/4 inches. It’s certified to UL 305 Panic Hardware and ANSI/BHMA A156.3 Grade 1 standards, ensuring compliance with safety regulations.For added functionality, consider options like electric or cylinder dogging, which provide management control over the exit device. The Adams Rite 8611MLR-48-24V is the ideal choice for building professionals and homeowners seeking safety, reliability, and ease of use in exit hardware.

Concealed Vertical Rod Exit Device (CVR) Motor Latch Retraction, Fits Narrow and Wide Stile Aluminum Doors, 36in x 96in, 628/US28 Aluminum Clear Anodized

Notice: The info below is not item specific.

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking.

Features:

• Patented top latching mechanism interlocks door to frame
• Strong, durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install
• Clean, unobtrusive design

Certifications:

• UL 305 Panic Hardware
• ANSI/BHMA A156.3 Grade 1
• California State Fire Marshall
• New York City MEA

Specifications:

• Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed. Lever Entry Trim is field reversible.
• Pushbar Length Standard sizes: dimensioned for 30″, 36″, 42″, and 48″ openings. Standard width bars can be field cut to the next smallest opening width.
• Bar Height: Standard model adjusts from 30″ to 44″.
• Door Height: Standard unit adjustable for doors up to 66″ above the selected bar height. For doors over 66″ above bar height, up to 10 ft use 8655 Tall Door Kit.
• Door Thickness: Suits 1-3/4″ standard, up to 2-1/4″. Device requires modification when used with cylinder in doors over 1-3/4″.
• Stile Width: Minimum 2″ Stile. Fits narrow, medium, and wide stile aluminum doors.

Series Options:

• Alarmed Exit Device: This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum opening width 36″”. Cannot be ordered with other exit device Options.
• Request to Exit (REX) – Monitor / Signal Switch: Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices.
• Cylinder Dogging: For management control of dogging exit devices for life-safety exit devices only.
• Electric Dogging: A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation.
• Matching End Caps: Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only.
• Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

Finishes:

• 313 – Dark Bronze Anodized
• 335 – Black Anodized
• 628 – Clear Anodized
• US3 – Bright Brass
• US4 – Satin Brass
• US32 – Bright Stainless
• US32D – Satin Stainless

Attributes

Ship via: No UPS – Common Carrier Only

Alternate Codes: 8611MLR-48-24V, 8611MLR4824V

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Door Height: 66″

Door Type: Aluminum

Door Width: 48″

Electrical Option: Motorized Latch Retraction

Exit Device Category: Narrow Stile Concealed Vertical Rod Exit

Finish Code: 628

Finish Color: Aluminum, Anodized Aluminum, Brushed Aluminum, Clear, Satin Aluminum

Handing: Non-Handed

Series: 8600

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Stile Width: 2in minimum

Voltage: 24

Voltage Type: VDC – Direct
