Description

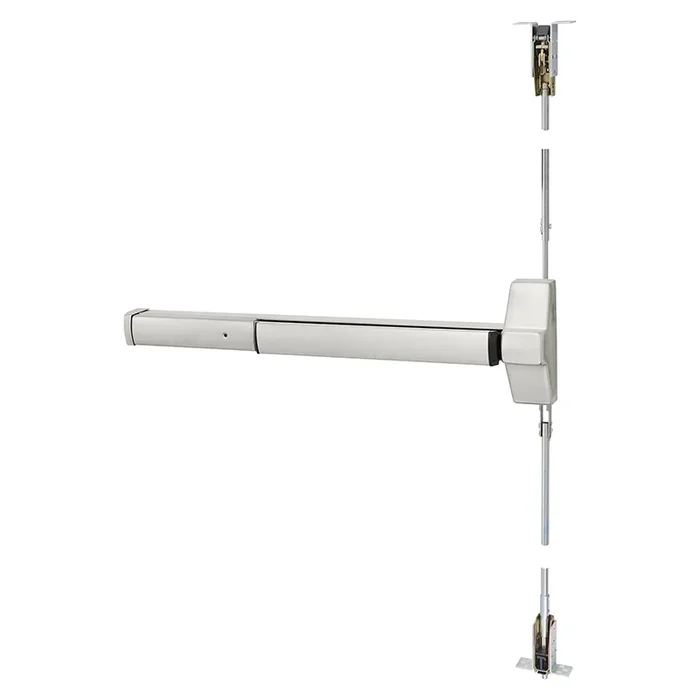

Corbin Russwin ED5800 630 W048 MELR Concealed Vertical Rod Device
Corbin Russwin ED5800 630 W048 MELR Concealed Vertical Rod Device is a top-tier exit solution designed for both durability and functionality. Measuring 48 inches, this motorized latch retraction device is crafted from satin stainless steel, ensuring a sleek and professional appearance. Corbin Russwin’s commitment to quality shines through, as all ED5000 Series exit devices undergo extensive lab and field testing, exceeding ANSI/BHMA Grade 1 standards for strength and cycle performance. This concealed vertical rod device not only meets life-safety and security needs but also offers modular construction for maintenance-free operation. Its design accommodates a range of door materials, including metal and wood, and fits doors 36 to 48 inches wide and up to 96 inches high. The device features reversible handing, making it versatile for installation in commercial spaces.Additionally, the ED5800 is available with electrified options, including electric latch retraction and a complete offering of electro-mechanical solutions. The inclusion of Microshield® antimicrobial coating and options for Museo® decorative levers enhance both safety and aesthetics, while its Environmental Product Declaration (EPD) certification underscores its sustainable design. Backed by a five-year warranty, the Corbin Russwin ED5800 is a reliable choice for any professional looking to enhance security and accessibility.
Concealed Vertical Rod Device
Concealed Vertical Rod Exit Device, 48″, Motorized Latch Retraction, Satin Stainless Steel
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field. Testing procedures go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 Series, which is backed by a 5-year warranty. Over the past 100 years, Corbin Russwin has been well known for weaving pleasing aesthetics and inventive designs into architectural door hardware. The ED5000 Series offers smooth lines and a full range of trim designs with visual diversity. Today’s door hardware must fulfill life-safety and security needs. The ED5200 Series offers features that excel in these areas. The ED5200 Series also offers a full range of electrified options, including delayed egress, motorized electric latch retraction, electrically controlled trim and switches among several other options.
Among the strongest, most durable exit devices on the market, with additional security options available.
The ED5000 is available in rim, mortise, surface vertical and concealed vertical rod configurations.These exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.
- Modular construction, maintenance-free design
- Available in rim, mortise, surface vertical rod and concealed vertical rod
- Complete offering of electro-mechanical solutions
- Available with Microshield® antimicrobial coating
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5 year warranty
- Available with Museo® decorative levers and 13 architectural finishes
- Environmental Product Declaration (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48″
Device Type: Concealed Vertical Rod
Door Height: 96 In.
Door Material: Metal or Wood
Door Thickness: 1-3/4 in.
Door Width: 36 In. – 48 In.
Electric Options: Electric Latch Retraction
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Handing: Reversible
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Exit Only, Accepts Trim
Minimum Stile Size: 4-1/2 In.
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: ED5000 Series Pushpad Exit Devices
Strike Bottom: 650F57-8
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 540F54-8
Type: Exit Devices
Unit of Measure: EACH
Resources
- 2 – ED4000/5000 x M94 x 2 – 6900 Powermatic x 2 Actuators
- 755-759 & 955-959 Trim for ED5000 Series
- 781N General Wiring Information
- 782 Power Controller
- 7M, 9M, F2M, F3M, T3M Trim for ED5000 Series
- 9903 & 9905 Trim For ED5000 Series
- DEED Delayed egress wired to release both exits when one goes into alarm
- Delayed Egress Exit – All Functions
- Delayed Egress x DK11 x BPS
- Delayed Egress x MKA2 x BPS
- ED 4000/5000 M94 x DK11 x BPS 24 1 Pair Doors
- ED4000, ED5000 with M61 Alarm Option and ED40AK, ED50AK Alarm Retrofit Kit Installation Instructions
- ED4000/5000 x M92 to Shunt Actuators x 6900 Powermatic x 2 Wall Plates Pair Doors
- ED4000/5000 x M92 to Shunt Actuators x 6900 Powermatic x 2 Wall Plates Sgl Doors
- ED4000/5000 x M94 x 6900 Powermatic x 2 Wall Plates
- ED4000/5000 x M94 x 6900 Powermatic x 2 Wall Plates By MKA Key Switch to Disable Exterior Actuator
- ED4000/5000 x M94 x 6900 Powermatic x DK 11 x 1 Wall Plates Interior
- ED4000/5000 x M94 x 6900 Powermatic x Mag x DK 11 x 1 Wall Plates Interior
- ED4000/5000 x M94 x DK11 x BPS 24 1
- ED4000/ED5000 – Exits with Electric Latch Pullback and-or Monitors Installation Instructions
- ED4000/ED5000 Delayed Egress Exit Device Installation Instructions
- ED4000/ED5000 Series Parts Manual
- ED5000 Series Mechanical Exit Device – Environmental Product Declaration (EPD)
- ED5000 Series Pushpad Exit Devices Cut Sheet
- ED5002 Series Double Cylinder Exit Devices
- ED5200A Series
- ED5200S(A) Series
- ED5200S(A) Series Installation Instructions
- ED5202(A) Series Rim Double Cylinder Exit Device Installation Instructions
- ED5202S(A) Series SecureBolt® Double Cylinder Exit Device Installation Instructions
- ED5400 SVR Exit Device – Environmental Product Declaration
- ED5400A & ED5470B Series
- ED5400A & ED5470B Series Installation Instructions
- ED5470(B) Series – SVR Mounting Plate
- ED5470(B) Series – SVR Mounting Plate Installation Instructions
- ED5470(B) Series-M107 Strike for WS Series ED5470(B) Exit Device Surface Vertical Rod Installation Instructions
- ED5470B & ED5860B Series Popper Installation Instructions
- ED5600A Series Installation Instructions
- ED5602(A) Series Mortise Double Cylinder Exit Device Installation Instructions
- ED5800A Series CVR
- ED5800A Series CVR Installation Instructions
- ED5860B Series CVR Installation Instructions
- Pair ED4000/5000 x M94 x 2- 6900 Powermatic x 2 Wall Plates By MKA Key Switch to Disable Exterior Ac
- TH910 Heavy Duty Thumbpiece Trim
- TH950 Heavy Duty Thumbpiece Trim
- TH955 and TH959 Heavy Duty Thumbpiece Trim
- TH957 Heavy Duty Thumbpiece Trim
- VT9 Series Anti-Vandal Pull Trim for ED5000 Series Installation Instructions
- Video: ED5800 Series Installation
- Windstorm Exit Device Shim Kits for ED5200S (A) x M107
