Description

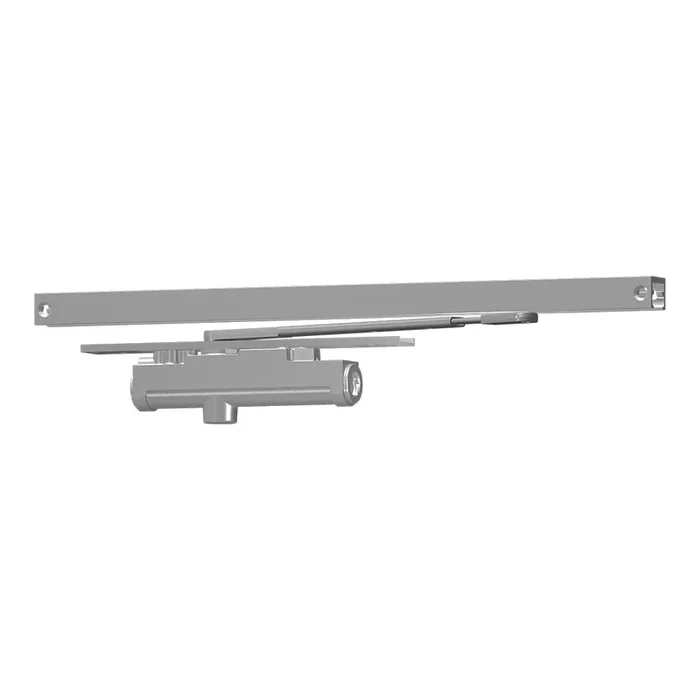

LCN 3133-BUMPER RH 689 Concealed Track Closer AL
LCN 3133-BUMPER RH 689 Concealed Track Closer AL is designed to seamlessly integrate into 1-3/4 inch interior doors, providing a sleek and unobtrusive solution for both commercial and residential applications. This concealed door closer features a single lever arm and roller assembly, ensuring complete concealment for a clean aesthetic.Engineered for right-handed doors, the 3130 Series supports door swings of up to 140 degrees, making it versatile for various architectural needs. It is also available in a range of finishes, including a matte silver (689/US28) option, allowing it to complement any interior design scheme. The closer meets ADA requirements, ensuring accessibility for all users. Installation is straightforward with the included standard arm, track, and a screw pack suitable for both wood and machine applications. Designed to perform reliably, the LCN 3133 features a limited 15-year warranty, reflecting its Grade 1 durability. Additionally, it is equipped with cold weather fluid for consistent operation in varying climates. With options for custom powder-coated finishes and a primer for corrosive environments, this closer is a robust choice for demanding applications. Experience the blend of functionality and style with the LCN 3133-BUMPER RH.
Concealed Track Closer AL
Track Door Closer w/Bumper, Right Hand, Aluminum
The 3130 Series is a concealed door closer designed to nount in a 1-3/4 in. interior door. The single lever arm and roller assembly provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
The 3130 Series is a concealed closer designed to mount in a 1 3/4″ interior door.
The single lever arm and roller assembly of the LCN 3130 Series provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack
- Sized cylinders for interior doors to 3’2”
- Handed for right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coated finish
- Optional plated finish on arm and fasteners
- Optional SRI primer for installations in corrosive conditions
- Consult factory for installation with pivots
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Degree Swing: 140 Deg.
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Right-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Door
Pack Qty: 1
Series: 3130 Series Concealed Closers
Ship Weight: 8 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Door
Unit of Measure: Each
Resources
- 3130 Series Concealed Closers Cut Sheet
- LCN 3130 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Concealed Closers Catalog
- LCN Electrified Door Control Product Guide
- LCN Fire/Life Safety Closers/Holders Series Product Guide 1
- LCN Fire/Life Safety Closers/Holders Series Product Guide 2
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
