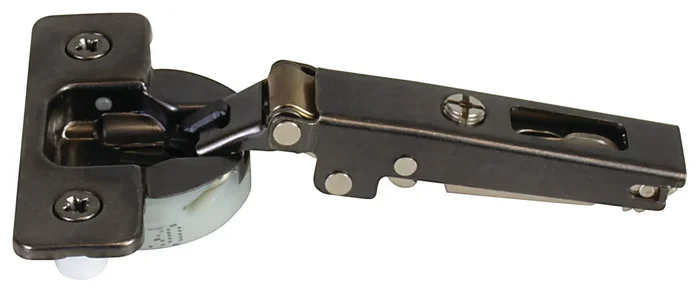

Concealed Hinge Salice 100 Series – 105 Opening Angle – Silentia+ Titanium

Description

Hafele 329.50.414 Salice 100 Series Concealed Hinge, 105 Silentia+, Titanium

Hafele 329.50.414 Concealed Hinge, Salice 100 Series, offers a seamless blend of functionality and style, perfect for wood doors. Designed for full overlay applications, this hinge features a 105° opening angle, allowing for easy access and enhanced usability in various settings. Constructed from durable steel and finished in a sleek titanium color with nickel plating, it not only meets aesthetic standards but also provides robust performance. This hinge is impervious to temperature extremes, ensuring reliability in a variety of environments, and it exceeds ANSI/BHMA standards A156.9 2010, making it a trustworthy choice for professionals. Installation is straightforward, requiring cup drilling with a drilling pattern of 45/9.5, which facilitates a precise fit. For added convenience, please note that mounting plates are sold separately, allowing for customizable installation to meet specific project needs. The Hafele 329.50.414 hinge is an ideal solution for anyone looking to enhance their cabinetry with a high-quality, silent operating hinge that combines modern design with exceptional durability. Whether you’re a building professional or a knowledgeable homeowner, this hinge is a valuable addition to your hardware collection, ensuring every door operates smoothly and quietly.

Salice – Concealed Hinge, 100 Series, 105 Opening Angle, Silentia+, Nickel Plated

Full Overlay, C1R6AE6, Dowel, Titanium

Impervious to temperature extremes Exceeds ANSI/BHMA standards A156.9 2010

Attributes

Adjustment facility: Side adjustment 4.5 mm, Height adjustment -2 – 2 mm

Area of application: For wood doors

Color/finish: Titanium colored, nickel plated

Cup drilling depth: 12.50 mm

Cup fixing: For press fitting

Door processing for assembly: with cup drilling

Drilling pattern: 45/9.5

Material: Steel

Model No.: C1R6AE6

Opening angle: 105°

Order reference: Mounting plates sold separately

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.17
