Concealed Hinge Salice 100 Series – 105 Opening Angle – Silentia+ – Nickel Plated

Description

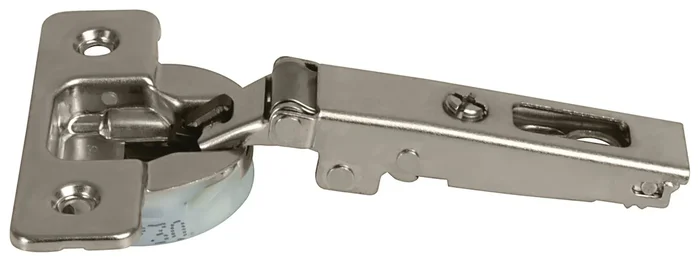

Hafele 329.28.384 Salice 100 Series Concealed Hinge, 105 Opening Angle, Silentia+, Nickel Plated

Hafele 329.28.384 Concealed Hinge, Salice 100 Series, offers a sophisticated solution for wood doors, ensuring a seamless and elegant appearance. With an impressive opening angle of 105°, this hinge allows for easy access and smooth operation, making it ideal for both residential and commercial applications. The nickel-plated finish not only enhances its aesthetic appeal but also provides durability and resistance against wear and corrosion. Constructed from high-quality steel, this hinge is designed to withstand temperature extremes, ensuring reliable performance in various environments. It exceeds ANSI/BHMA standards A156.9 2010, reflecting Hafele’s commitment to quality and longevity in its products. The hinge features a drilling pattern of 45/9.5, facilitating straightforward installation with cup drilling for assembly. Please note that mounting plates are sold separately, allowing for customization based on your specific installation needs. Whether you’re renovating a home or outfitting a new construction project, the Hafele 329.28.384 Concealed Hinge is a dependable choice that combines functionality and style. It ships conveniently via UPS, making it easy to incorporate this top-tier hardware into your next project.

Concealed Hinge, Salice Silentia+ 105 with Rapido fixing

Series 100 with integrated silicone oil dampers, Inset, C176PE9, Rapido

Attributes

Adjustment facility: Side adjustment 4.5 mm, Height adjustment -2 – 2 mm, Depth adjustment with SALICE A mounting plates +2.8 mmDepth adjustment with SALICE SM mounting plates from -0.5 to +2.8 mm

Area of application: For wood doors

Color/finish: nickel plated

Concealed hinge version: inset

Cup drilling depth: 12.50 mm

Cup fixing: Rapido

Door processing for assembly: with cup drilling

Drilling pattern: 45/9.5

Installation: Fixing door to carcase: sliding on with SALICE A mounting plates or quick fixing with SALICE SM mounting plates

Material: Steel

Model No.: C176PE9

Opening angle: 105°

Order reference: Mounting plates sold separately

Resources

• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.17
