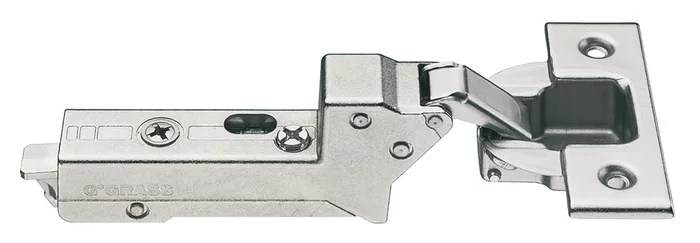

Hafele 348.34.733 Grass TIOMOS Concealed Hinge, 94 Opening Angle, Inset Mount

Hafele 348.34.733 Concealed Hinge, Grass TIOMOS, offers a sophisticated solution for thick and profile doors, accommodating door thicknesses up to 36 mm. This inset mounting hinge features a soft-close mechanism integrated into the hinge arm, ensuring a smooth and quiet closing action, which enhances the user experience. With an impressive opening angle of 94 degrees, it allows for easy access while maintaining a sleek appearance. Designed with optimal gap dimensions for doors up to 28 mm thick, this hinge provides precise adjustments with a side adjustment facility of ±2 mm, along with height and depth adjustments. The nickel-plated finish not only adds aesthetic appeal but also ensures durability, making it suitable for various wooden door applications.Installation is straightforward, utilizing a clip system that allows for tool-free mounting of the door onto the cabinet. The hinge features a cup drilling depth of 12.60 mm and a diameter of 35.00 mm, ensuring compatibility with a range of cabinet designs. With a model number of F017139441217, this concealed hinge is an excellent choice for professionals seeking reliability and functionality in architectural hardware.

Grass – Concealed Hinge, Tiomos, 94 Opening Angle, Inset Mounting

for thick doors and profile doors up to 36 mm, Impresso, soft-close, model F017139441217

with soft closing mechanism integrated in hinge arm, with 3 settings Optimum gap dimensions with door thickness of up to 28 mm
Optimal reveal up to (1 7/16″) 36 mm thickness Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32″) 2mm

Set back mounting plate screw-on position by door thickness +1.5 mm.

• Door overlay mm -4 -3 -2 -1 0 3 4 0 3 4 5 6 2 3 4 5 6 7 3 Distance to cup E mm Mounting plate distance mm
• Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,2 0,2 0,2 0,2 0,2 18 0,2 0,2 0,2 0,2 0,2 20 0,3 0,3 0,3 0,3 0,3 22 0,5 0,5 0,5 0,5 0,5 24 0,6 0,6 0,6 0,6 0,6 26 1,0 1,0 1,0 1,0 1,0 28 2,0 1,5 1,5 1,3 1,3 30 4,5 3,5 2,5 2,5 1,5 36 10,6 9,6 8,6 7,6 6,7 Minimum gap F

Attributes

Adjustment facility: Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate

Area of application: For thick doors

Color/finish: nickel plated

Concealed hinge version: inset

Crank type: High Cranked

Cup drilling depth: 12.60 mm

Cup drilling Ø: 35.00 mm

Cup fixing: without tools

Door processing for assembly: with cup drilling

Drilling pattern: 42/11

For door material: wood

Installation: Door on cabinet without tools with clip system

Installation reference: Set back mounting plate screw-on position by door thickness +1.5 mm.

Lock function: With automatic closing spring

Material: Cup: Steel, Hinge arm: Zinc alloy

Model No.: F017139441217

Opening angle: 95°

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.50
