Description

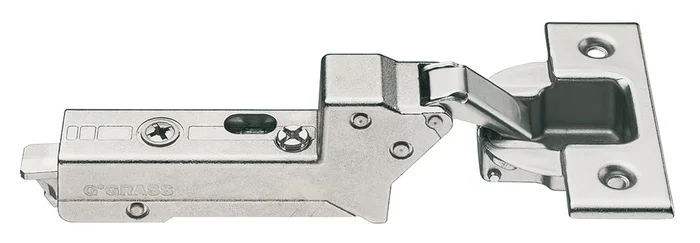

Hafele 348.31.613 Grass TIOMOS Concealed Hinge, 110 Opening Angle, Inset Mounting
Hafele 348.31.613 Concealed Hinge, Grass TIOMOS offers an elegant solution for standard applications, designed to seamlessly integrate into your cabinetry. This hinge features a 110° opening angle and inset mounting, making it ideal for a variety of door styles. Engineered to self-close, its press-fit design allows for effortless installation, while the optional integrated 3-way adjustable soft closing mechanism enhances the user experience by providing smooth and quiet door operation. With a door thickness capacity of up to 24 mm, this hinge accommodates various door overlays, ensuring optimum gap dimensions for a polished finish. The hinge arm’s automatic opening mechanism simplifies access by allowing front panels to open conveniently without handles. Adjustability is a key feature, with side adjustment of 2 mm, height adjustment ranging from -2.5 to 2.5 mm, and depth adjustment from -2 to 3 mm, enabling precise alignment. Crafted from durable materials, including a steel cup and zinc alloy hinge arm, the Hafele 348.31.613 hinge is nickel plated for a sleek appearance. Installation is straightforward with a clip system, making it suitable for wood doors. Elevate your cabinetry with this versatile and functional hinge solution.
Grass – Concealed Hinge, Tiomos, 110 Opening Angle, Inset Mounting
for standard applications, Self-close, press-fit, model F045138464228
optionally with or without integrated, 3-way adjustable soft closing mechanism in hinge arm with automatic opening mechanism for convenient opening of front panels without handles Optimum gap dimensions with door thickness of up to 24 mm
Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32″) 2 mm.
Set back mounting plate screw-on position by door thickness +1.5 mm.
- Minimum gap for doors with chamfered edges (r = 1 mm) with factory settings Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 16 0,6 0,6 0,6 0,6 0,6 17 0,6 0,6 0,6 0,6 0,6 18 0,7 0,7 0,7 0,7 0,7 19 0,9 0,9 0,9 0,9 0,9 20 1,1 1,1 1,1 1,1 1,1 21 1,4 1,3 1,3 1,3 1,3 22 1,6 1,6 1,6 1,5 1,5 24 2,4 2,1 2,1 2,1 2,0 Minimum gap F
- Door overlay mm -4 -3 -2 -1 0 3 4 0 3 4 5 6 2 3 4 5 6 7 3 Distance to cup E mm Mounting plate distance mm
Attributes
Adjustment facility: Side adjustment facility 2 mm, Height adjustment facility -2.5 – 2.5 mm, Depth adjustment facility -2 – 3 mm, Height adjustment depending on mounting plate
Area of application: for standard applications
Color/finish: nickel plated
Concealed hinge version: inset
Crank type: High Cranked
Cup drilling depth: 12.60 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet without tools with clip system
Installation reference: Set back mounting plate screw-on position by door thickness +1.5 mm.
Material: Cup: Steel, Hinge arm: Zinc alloy
Model No.: F045138464228
Opening angle: 110°
Order reference: Please order Grass Tipmatic separately for hinges with opening mechanism.
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.51
