COB Gold LED Strip Light – Hafele Loox5 LED 3103 24 V

Description

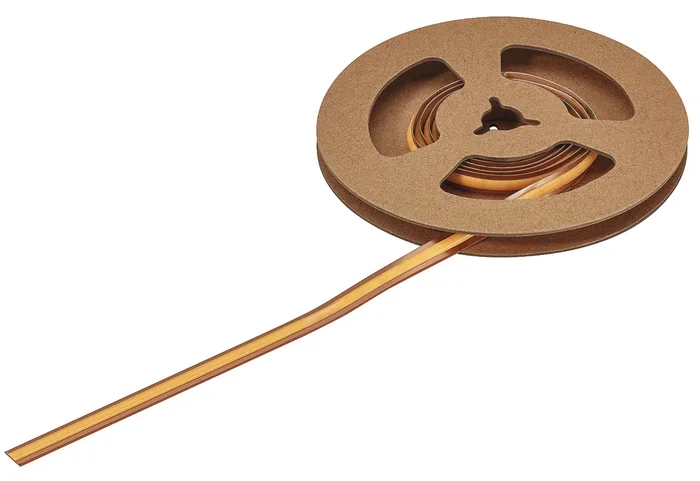

Hafele 833.76.503 Hafele Loox5 3103 COB Gold LED Strip Light, 24V

Hafele 833.76.503 LED strip light, COB Gold, Hafele Loox5 LED 3103 24 V offers an exceptional solution for indirect illumination in various settings, such as furniture and storage spaces. This 5-meter strip features a sleek 8 mm width and a height of just 2 mm, allowing for seamless integration into shallow profiles. With 480 LEDs per meter, it delivers a uniform cool white light at a color temperature of 5000 K, ensuring that LED dots are not visible, enhancing aesthetic appeal. This self-adhesive strip operates at 24 V and consumes only 4.8 W per meter, providing an impressive luminous efficacy of 95 lm/W and a luminous flux of 460 lm per meter. With a maximum visual strip length of 8.00 m, it maintains a consistent luminous output, with a permissible drop of up to 30%. The strip is also dimmable, allowing for customized lighting experiences. Designed for indoor use, the IP20 rating indicates that it is protected against solid objects larger than 12.5 mm, making it suitable for various applications behind glass edges and furniture. The Hafele 833.76.503 is the ideal choice for those seeking energy-efficient, stylish, and versatile lighting solutions. Please note that lead must be ordered separately.

LED strip light, COB Gold, Hafele Lighting LED 3103 24 V

8 mm 2-pin (monochrome), 480 LEDs/m, 4.8 W/m, IP20, cool white 5000 K, 5 m

Uniform light output; LED dots are not visible Enables the use of shallow profiles

Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A directly following strip section with a new infeed is noticeably lighter. Maximum wattage-dependent strip length on the driver, see Technical data for LED strip lights.

Attributes

Area of application: Indirect illumination of furniture and furnishings, Storage spaces, Behind glass edges

Color temperature: 5,000 K

Degree of protection: IP20

Dimmable: yes

Energy efficiency class: F

Height (inch): 1/16″

Installation: Self-adhesive

Light color: Cool white

Luminous efficacy: 95 lm/W

Luminous flux/m: 460 lm

Material: Plastic

Max. strip length (visual): 8.00 m

Min. bending radius: 30.00 mm

Nominal voltage: 24.00 V

Order reference: Please order lead separately.

Section length: 16.67 mm

Strip height: 2.00 mm

Strip length: 5.00 m

Strip width: 8.00 mm

Supplied with: 1 roll

Version: COB LED, i.e. continuous phosphor coating over all individual LEDs of the entire band, without visible points

Wattage/m: 4.80 W

Width (inch): 5/16″

Resources

• CAD data
• Certificate
• Fitting instructions for COB monochrome
• Hafele_Lighting_ 2024 | Page 111
• Hafele_Lighting_ 2024 | Page 114
• Installation instructions
