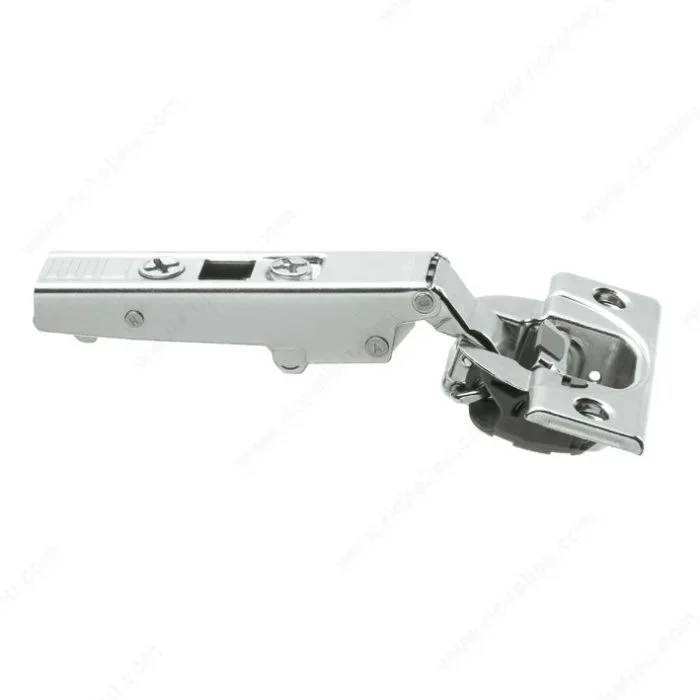

Richelieu 71B355180 BLUMOTION CLIP Top Hinge 110 – Instruction Manual
Richelieu 71B355180 CLIP top BLUMOTION – Hinge 110 delivers a seamless, silent operation for your cabinetry. This innovative hinge features integrated BLUMOTION technology, providing a soft-closing mechanism that ensures furniture doors close effortlessly, enhancing both functionality and user experience. Designed for durability, it is engineered to withstand over 200,000 cycles of opening and closing, guaranteeing long-lasting performance throughout the life of your furniture. The hinge is suitable for frameless cabinets with a minimum cabinet thickness of 5/8 inches and accommodates door thicknesses of the same measure. With a hinge opening angle of +110°, it allows for easy access while maintaining a sleek appearance. Crafted from high-quality steel and finished in nickel, the hinge not only performs well but also complements modern cabinetry aesthetics. The CLIP top BLUMOTION hinge is easy to install with a screw-on fixing type, although screws are not included. It requires a milling depth of at least 1/2 inch and has a milling diameter of 1 3/8 inches, making it versatile for a range of standard door applications. Packaged in industrial specifications, this product represents Richelieu’s commitment to quality and precision in hardware solutions.
CLIP top BLUMOTION – Hinge 110
Precise movement, like clockwork. Integrated BLUMOTION is a technical masterpiece that fits into the smallest of spaces and provides your furniture doors with silent, effortless closing.
CLIP top BLUMOTION is designed to open and close at least 200,000 times, with a compelling quality of motion, to last the lifetime of the furniture.
Attributes
Cabinet Thickness: Min. 19/32 in*
Cabinet Type: Frameless
Closing Mechanism: Soft-Closing
Door Position: Full Overlay
Door Thickness: Min. 16 mm
Finish: Nickel
Fixing Type: Screw-On
Hinge Opening Angle: +110°
Hinge Type: CLIP top BLUMOTION
Material: Steel
Mechanism: Spring Closing, Soft-Closing
Milling Depth: 13 mm
Milling Diameter: 35 mm
Packaging Specifications: Industrial Packaging
Packaging format: Per unit
Product #: 71B355180
Product number: 71B355180
Screw/ Nail: Not Included
Unit 1: case – 250
Use Type: Standard Door
