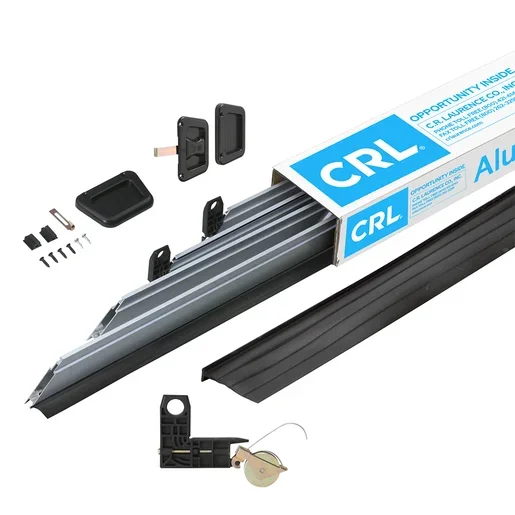

Clear Anodized 60″ x 81″ Heavy-Duty Extruded K.D. Sliding Screen Door Kit

Description

CRL KDT2060 Clear Anodized 60″x81″ Heavy-Duty K.D. Sliding Screen Door Kit, 2″ Frame

CRL KDT2060 Clear Anodized 60″ x 81″ Heavy-Duty Extruded K.D. Sliding Screen Door Kit offers exceptional durability and user-friendly installation, making it an ideal choice for both residential and commercial applications. Featuring a robust 2″ (51 mm) wide extruded aluminum frame with a .043″ (1.1 mm) wall thickness, this kit guarantees superior strength and reliability. Installation is quick and efficient, thanks to pre-mitered top and bottom rails, along with pre-installed roller and corner pieces. The fixed door width ensures a precise fit for standard openings, while the 1-3/8″ (35.2 mm) diameter steel ball bearing rollers provide a smooth sliding action, easily attaching to glass-filled nylon corners. The roller adjustment screw is discreetly hidden for a sleek finish. Security is enhanced with a universal plastic pull handle featuring a steel latch hook, which locks into a diecast keeper. The innovative vinyl bug strip with a t-slot edge design simplifies mesh installation, and with the option for both vinyl and foam core spline types, customization is straightforward. This sliding screen door kit is available in three standard finishes and can be shipped conveniently via UPS, ensuring accessibility for your project needs.

Clear Anodized 60″ x 81″ Heavy-Duty Extruded K.D. Sliding Screen Door Kit – 2″ Frame with T-Slot Vinyl Design

• Versatile for Commercial Applications
• Adjustable Height
• Quick and Easy Installation
• Available in Three Standard Finishes
• Can Ship UPS

The CRL K.D.T Sliding Screen Door Kit is designed for durability and ease of installation. It features 2″ (51 mm) wide extruded aluminum frame members with a .043″ (1.1 mm) wall thickness for superior strength. The kit comes with pre-mitered top and bottom rails, and the roller and corner pieces are pre-installed, making assembly quick and efficient. The door width is fixed, ensuring a precise fit for standard openings.

It includes 1-3/8″ (35.2 mm) diameter steel ball bearing rollers that attach easily to the glass-filled nylon corners, ensuring smooth sliding action. The roller adjustment screw is conveniently hidden on the edge of the door for a sleek appearance. A universal plastic pull handle with a steel latch hook is provided, which locks securely into the included diecast keeper for added security. Our new series design features a vinyl bug strip with a t-slot edge design for easier slippage into the frame extrusion. The recommended retainer spline size is .135″, and both vinyl and foam core spline types can be used to secure the screen mesh (mesh not included).

This sliding screen door kit is ideal for both residential and commercial applications, offering a reliable and easy-to-install solution.

Product Warning

This new kit has top and bottom rails 1/2″ (12.7 mm) longer than the standard door width (a 36″ door will measure 36-1/2″ wide). Also, the door roller slot has been widened to be adjusted from 36-1/2″ to 35-1/2″. It is important to remember that both ends of the door rails should be cut no more than 1/2″., allowing for 1″ of adjustability

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Cuttable: Yes

Finish/ Color:: Clear Anodized

Frame Height: 2 in. (51 mm)

Includes: Mounting Hardware

Maximum Height: 81 in. (2057 mm)

Maximum Width: 60 in. (1524 mm)

Mesh: No

Replacement Parts: Yes

Shipping Limitations: None

Wall Thickness: 0.043 in. (1.1 mm)

Weight Capacity: Not Rated

Resources

• KDT20 Instructions Instructions
