Description

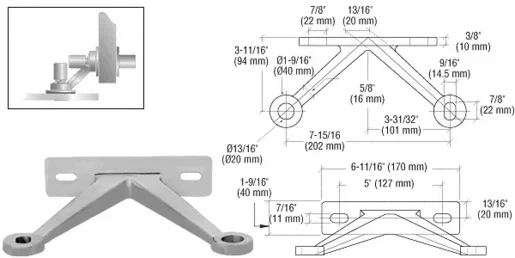

CRL FMH2VBS Brushed Stainless Heavy-Duty Double Arm “V” Wall Mount Spider Fitting
C.R. Laurence FMH2VBS Brushed Stainless Heavy-Duty Spider Fitting Double Arm “V” Wall Mount Frame offers a robust solution for attaching a single glass panel to a wall or structural fin. Designed for use with monolithic tempered glass up to 1-1/16″ (27 mm) thick, this fitting combines strength and elegance, making it ideal for modern architectural applications. Included with the fitting are two 10-1.5 x 65 mm (2-9/16″) stainless steel threaded studs and four matching cap nuts with washers, ensuring a complete mounting solution. For those looking for additional components, compatible fittings include the FMH1LHBS, FMH1LHPS, FMH1RHBS, FMH1RHPS, FMH4BS, or FMH4PS. Constructed from durable Alloy 316 stainless steel with a brushed finish, this fitting not only resists corrosion but also enhances the aesthetic appeal of any space. With a heavy load capacity, it is built to support significant glass panels securely. While stainless steel is resistant to corrosion, regular maintenance is recommended to preserve its factory finish. Shipping via UPS is available, and no limitations apply to its shipping. Elevate your glass installations with the reliability and style of the C.R. Laurence FMH2VBS fitting.
Brushed Stainless Heavy-Duty Spider Fitting Double Arm “V” Wall Mount Frame
- For Use with Glass Up to 1-1/16″ (27 mm)
- Complete with Hardware to Mount to Wall or Structural Fin
- Glass Attachments Sold Separately
- Use Monolithic Tempered Glass
This
CRL Fitting is used to attach a single glass panel to a wall or structural fin. Comes with two 10-1.5 x 65 mm (2-9/16″) stainless steel threaded studs and four matching cap nuts with washers. Replacement Stud Set is available.
For companion fittings use Cat. No. FMH1LHBS, FMH1LHPS, FMH1RHBS, FMH1RHPS, FMH4BS or FMH4PS Fittings.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Arms: 2
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Load Capacity: Heavy
Material: Stainless Steel (Alloy 316)
Mounting Application: Wall
Shipping Limitations: None
Resources
- CRL Spider Fittings Test Report
- CRL Stainless Steel Disclaimer
- CRL Stainless Steel Spider Fittings Test Report
- FMH2V Detailed CAD Drawings.dwg
- FMH2V Detailed CAD Drawings.pdf
- Heavy Duty Spider Fittings System CAD Drawings.dwg
- Heavy Duty Spider Fittings System CAD Drawings.pdf
- Spider Fitting Glass Awning System CAD Drawings.dwg
- Spider Fitting Glass Awning System CAD Drawings.pdf
- Spider Fitting Installation Instructions
