Description

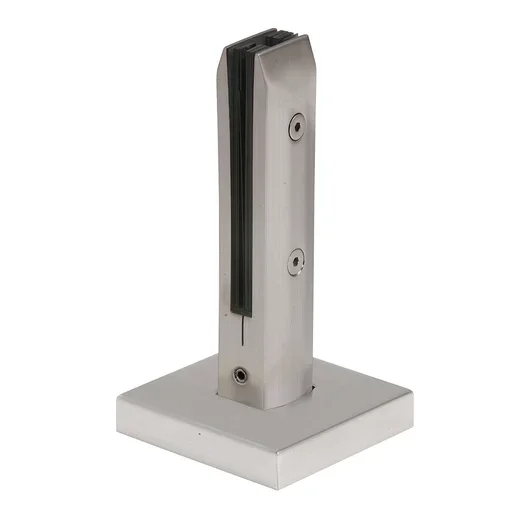

CRL AFWC1SBS Brushed Stainless Beveled Surface Mount Frameless Windscreen Clamp
C.R. Laurence AFWC1SBS Brushed Stainless Beveled One-Piece Surface Mount Frameless Windscreen Clamp is expertly engineered for use with 3/8″ or 1/2″ (10 or 12 mm) tempered monolithic glass and 9/16″ (13.52 mm) tempered laminated glass. This clamp features an easy-to-install surface mount design, making it a fantastic choice for creating elegant glass windscreen solutions around pool decks and patios. With a height of 9-11/16″ (246 mm), the AFWC1SBS is designed for seamless integration into your outdoor space while minimizing visual distractions from vertical or horizontal frames. The installation requires two 3/4″ (19 mm) holes per clamp, ensuring a secure fit. The brushed stainless steel finish not only enhances the aesthetic appeal but also offers durability, although periodic maintenance is recommended to preserve its factory finish. The clamp’s robust construction, made from 316 alloy stainless steel, ensures resilience in various environmental conditions. Additionally, custom powder-painted finishes are available, allowing for tailored solutions that meet your design vision. Always consult local building codes to ensure compliance with regulations when using these high-quality clamps. The AFWC1SBS is a reliable choice for professionals seeking both functionality and style in their architectural projects.
Brushed Stainless Beveled One-Piece Surface Mount Frameless Windscreen Clamp
- Designed for 3/8″ or 1/2″ (10 or 12 mm) Tempered Monolithic Glass and 9/16″ (13.52 mm) Tempered Laminated Glass
- Easy-to-Install Surface Mount Design
CRL One-Piece Surface Mount Clamps are designed for easy surface mount installation around pool decks and patios. Glass fabrication requires two 3/4″ (19 mm) holes per Clamp. Height: 9-11/16″ (246 mm).
CRL Frameless Windscreen Clamps are typically used to create a tempered glass windscreen or pool surround with minimal distractions from vertical or horizontal frame members. Four styles are designed for insertion in core-drilled holes in a concrete deck, which are then filled with expanding cement. There is also a Windscreen Clamp designed to be mounted on the face of a wall or planter box. And now you can select one of our Surface Mount Models. Custom powder-painted finishes are also available.
NOTE: CRL is an international supplier, and suggests you check local building codes to confirm these Frameless Windscreen Clamps meet local regulations.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Alloy: 316
Attachment: Surface
Base Plate Length: 5-3/16 in. (132 mm)
Base Plate Width: 5-3/16 in. (132 mm)
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in., 9/16 in. (10 mm, 12 mm, 14 mm)
Material: Stainless Steel
Mounting Hole Diameter: 7/16 in. (11 mm)
Shipping Limitations: None
Resources
- AFWC1S Detailed CAD Drawings.dwg
- AFWC1S Detailed CAD Drawings.pdf
- Architectural Glass Railing Systems and Hardware Catalog
- CRL Stainless Steel Disclaimer
- FSC Frameless Glass Clamp Railing System CAD Drawings.dwg
- FSC Frameless Glass Clamp Railing System CAD Drawings.pdf
- FWS System CAD Drawings.dwg
- FWS System CAD Drawings.pdf
- Frameless Windscreen Clamp Engineering Report
- Windscreen and Pool Fencing Systems Product Information
