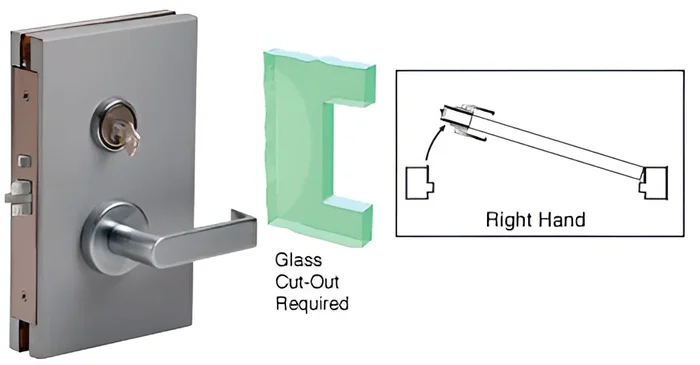

CRL DL610RSBS Brushed Stainless 6″x10″ RH Center Lock with Deadlatch – Storeroom Function
C.R. Laurence DL610RSBS Brushed Stainless 6″ x 10″ RH Center Lock With Deadlatch in Storeroom Function provides a versatile locking solution for heavy glass doors. Designed for 1/2″ (12 mm) tempered glass, this lock features a storeroom function where the latchbolt is operated by the inside lever and a key from the outside, ensuring security while allowing easy exit. The outside lever remains fixed, enhancing its reliability for storeroom applications. Available in five attractive finishes, this center lock not only offers aesthetic appeal but also integrates seamlessly into any architectural design. Installation is hassle-free, requiring only a simple cut-out in the glass and eliminating the mess of cement or silicone. Custom units can be ordered for different glass thicknesses, tailoring the lock to specific project needs. The DL610RSBS is part of a series that includes various lock functions such as Office, Entrance, Passage, and Classroom, allowing for diverse security applications. With a height of 10 inches and width of 6 inches, this lock is designed for durability and function. Backed by C.R. Laurence’s commitment to quality, this lock ships in under a week, making it an efficient choice for any building professional or knowledgeable homeowner.
Brushed Stainless 6″ x 10″ RH Center Lock With Deadlatch in Storeroom Function
- Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
- For 1/2″ (12 mm) Tempered Glass; Custom Units for Other Glass Thicknesses on Special Order
- Ships in Under a Week
- Available in Five Finishes
- Hassle Free Installation without the Mess of Cement or Silicone
- Jamb Mount Strike Plates on Special Order
- Use Monolithic Tempered Glass
CRL 6″ x 10″ Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2″ (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.
Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.
Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Dead bolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.
Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.
Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.
Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (12 mm)
Handing: Left Hand
Height: 10 in. (254 mm)
Shipping Limitations: None
Width: 6 in. (152 mm)
Resources
- 6 X 10 Center Lock Installation Instructions
- CRL Stainless Steel Disclaimer
- Installation Instructions 6x10inst.pdf
- Template 6×10 cutout.pdf
