CRL EH31 Brushed Nickel Set Screw Clamp for 1/4″ – 5/16″ Glass
C.R. Laurence EH31 Brushed Nickel Set Screw Clamp for 1/4″ to 5/16″ Glass offers a reliable and versatile solution for mounting lightweight glass in various applications. Crafted from durable solid brass, this clamp is tailored for glass thicknesses ranging from 1/4 inch to 5/16 inch (6 to 8 mm), making it ideal for projects such as small signs, low glass partitions, or securely attaching shelves to walls. One of the standout features of the EH31 clamp is its set screw design, which allows for easy installation without the need to drill holes in the glass. This not only simplifies the mounting process but also preserves the integrity of the glass. The clamp’s plastic-tipped set screw ensures a firm grip while minimizing the risk of damage to the glass surface. For optimal performance, it is recommended to attach the clamps into wall studs or a suitable wood substrate using CRL Cat. No. 8X112FHPSMS Flat Head Phillips Screws (sold separately). The brushed nickel finish adds a modern touch, making it suitable for both contemporary and traditional designs. Please note that CRL advises the use of tempered glass with this product to ensure safety and durability.
Brushed Nickel Set Screw Clamp for 1/4″ to 5/16″ Glass
- Set Screw Type for 1/4″ to 5/16″ (6 to 8 mm) Glass
- Extremely Versatile
- No Holes to Drill
CRL Single Set Screw Glass Clamps are designed for lightweight glass mounting solutions such as erecting small signs, low glass partitions in kiosks, or attaching shelves to walls. These solid brass clamps can be used for a variety of glass applications. It is recommended that these clamps be attached into wall studs or a wood substrate using CRL Cat. No. 8X112FHPSMS Flat Head Phillips Screws (sold separately). The glass is secured by a plastic tipped set screw. They can be installed without drilling holes in the glass. Clamps are designed to solve glass mounting problems such as flush glazing, connecting panels for railing systems or attaching shelves to walls.
Replacement Hardware: CRL P612 for Replacement Screws
Product Warning:
CRL recommends the use of tempered glass with this product.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

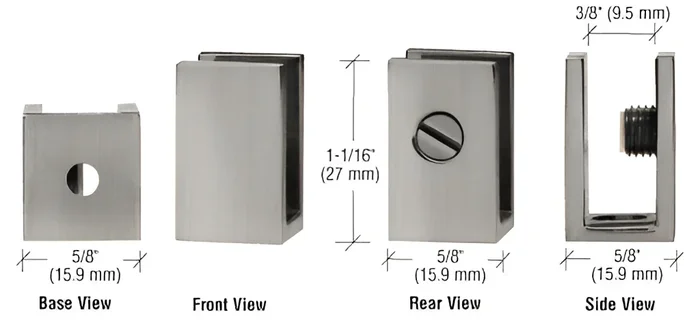

Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Brushed Nickel
Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)
Height: 1-1/16 in. (27 mm)
Length: 5/8 in. (15.9 mm)
Material: Brass
Shipping Limitations: None
Width: 5/8 in. (15.9 mm)
Resources
- EH31 Detailed CAD Drawings.dwg
- EH31 Detailed CAD Drawings.pdf
- Product Drawings EH31.dwg
- Product Drawings EH31.pdf
