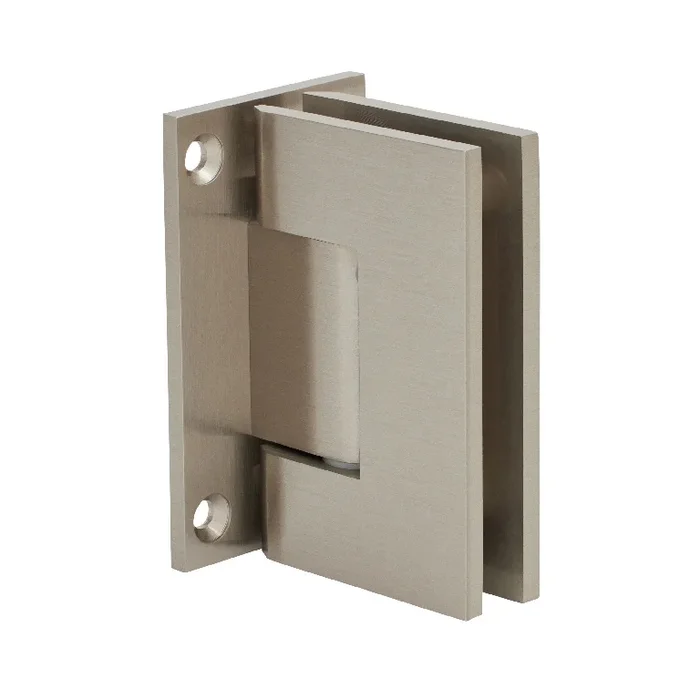

Brushed Nickel Geneva 537 Series Wall Mount Full Back Plate Standard Hinge

Description

CRL GEN537BN Brushed Nickel Geneva 537 Wall Mount Full Back Plate Hinge, 5 Offset

C.R. Laurence GEN537BN Brushed Nickel Geneva 537 Series Wall Mount Full Back Plate Standard Hinge With 5 Degree Offset offers both functionality and elegance for modern shower enclosures. Designed for use with 5/16″ (8 mm) to 1/2″ (12 mm) tempered glass, this hinge supports up to 80 lbs. (36 kg) with two hinges and 120 lbs. (54 kg) with three, accommodating door widths of up to 32″ (813 mm).A standout feature is the self-centering mechanism, equipped with a reversible 5-degree pivot pin. This allows for a tighter closure into the shower interior, enhancing both safety and aesthetics. Made from solid brass, the hinge is durable and offers a sophisticated brushed nickel finish, which is available in several beautiful options to complement your design vision. The Geneva hinge swings 90 degrees in and out, making it ideal for efficient space utilization. Each hinge comes with a three-year warranty, ensuring peace of mind for your investment. For added flexibility, custom pivot pins can be specified for “off-angle” installations, accommodating various architectural needs. Whether for a residential or hospitality setting, the C.R. Laurence Geneva series provides a reliable solution that combines style and performance.

Brushed Nickel Geneva 537 Series Wall Mount Full Back Plate Standard Hinge With 5 Degree Offset

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
• Use Monolithic Tempered Glass

The
CRL Geneva Series of professional Hinges is able to accommodate 5/16″ (8 mm) to 1/2″ (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate “off-angle” installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Using two hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).

Using three hinges with 5/16″ to 1/2″ glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate “off-angle” installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

SPECIFICATIONS:

Glass Thickness: 5/16″ (8 mm) to 1/2″ (12 mm) Tempered Safety Glass

Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.

Construction: Solid Brass

Hinge Swings: 90 degree in and 90 degree Out

Closing Type: Self-Centering when within 15 degree of Closed Position

Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16″ (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

5 Degree Pre- Set: Yes

Adjustable: No

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Edge Profile: Square

Finish/ Color:: Brushed Nickel

Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

Height: 3-1/2 in. (89 mm)

Material: Brass

Maximum Door Weight – 2 Hinges: 80 lbs. (36.3 kg)

Maximum Door Weight – 3 Hinges: 120 lbs. (54.4 kg)

Maximum Door Width – 2 Hinges: 28

Maximum Door Width – 3 Hinges: 32

Mounting Type: Wall Mount

Self- Centering: Yes

Series: Geneva

Shipping Limitations: None

Width: 2-3/16 in. (56 mm)
