Brass 18″ Glass Mounted Back-to-Back Standard Pull Handle by C.R. Laurence

Description

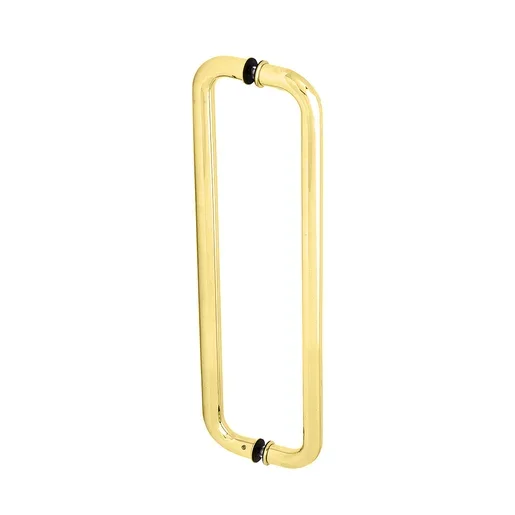

CRL CM18X18BR Brass 18″ Back-to-Back Glass Pull Handle

C.R. Laurence CM18X18BR Brass 18″ Glass Mounted Back-to-Back Standard Pull Handle is the perfect solution for enhancing the functionality and aesthetics of your glass installations. Designed for use with monolithic tempered glass, this pull handle accommodates glass thicknesses ranging from 3/8″ to 3/4″ (10 to 19 mm), ensuring compatibility with a wide variety of applications. Crafted from durable brass, the handle features a 1″ (25 mm) diameter tubing with a polished brass finish, providing a sophisticated look that complements any architectural style. The handle projects 3″ (76 mm) from the face of the glass, offering ample space for a comfortable grip. Each unit includes matching finish metal washers and rubber gaskets, along with two through-bolts for secure glass mounting, making installation straightforward and efficient. The CM18X18BR is stocked in up to five architectural finishes, allowing you to customize your project according to your design preferences. A note of caution: brass can be prone to oxidation, leading to a tarnished appearance over time.Elevate your space with the C.R. Laurence Glass Mounted Pull Handle, where elegance meets functionality.

Brass 18″ Glass Mounted Back-to-Back Standard Pull Handle

• Stocked in Up to Five Architectural Finishes
• For Use with 3/8″ to 3/4″ (10 to 19 mm) Glass
• Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
• Use Monolithic Tempered Glass

This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.

SPECIFICATIONS:

For Use With: 3/8″ to 3/4″ (10 to 19 mm) Glass

Construction:
1″ (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4″ (32 mm) Diameter Stainless
Steel (Cat. No. CD24X24BS125 Model only).

Projection: 3″ (76 mm) from Face of Glass to Outside of Handle

Glass Fabrication Required:
Two 5/8″ (16 mm) Diameter Holes

INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4″ (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Diameter: 1 in. (25 mm)

Finish/ Color:: Polished Brass

Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)

Material: Brass

Mounting Center To Center: 18 in. (457 mm)

Mounting Hole Diameter: 5/8 in. (16 mm)

Mounting Type: Back-To-Back

Shipping Limitations: None

Style Washer Diameter: 1-1/4 in. (32 mm)

Style Washers: Yes

Resources

• Brass Finish Disclaimer
• Technical Specifications PH-CM10X10.pdf
