Description
CRL PA100D3RKBS Blumcraft Brushed Stainless Right Hand Panic Handle, Keyed Access “D”

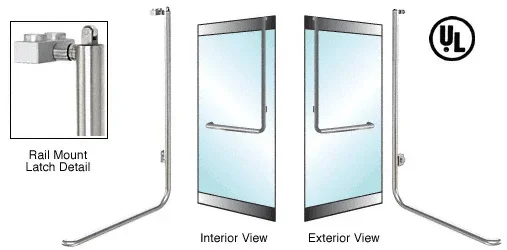

C.R. Laurence PA100D3RKBS Blumcraft Brushed Stainless Right Hand Reverse Rail Mount Keyed Access “D” Exterior, Top Securing Panic Handle is engineered for both elegance and functionality, making it an outstanding choice for ‘all-glass’ door applications. This panic handle features a sleek tubular design, available in a variety of finishes including polished and brushed stainless steel, satin and polished brass, and oil-rubbed bronze. Custom finishes and sizes are also offered, shipping within one to two weeks. Certified by UL, ULC, and ANSI/BHMA, this panic handle ensures compliance with stringent safety standards. Designed specifically for 1/2″ (12 mm) or 3/4″ (19 mm) tempered glass doors, it offers a maximum viewing area and a contemporary aesthetic. The slender 1-1/4″ (32 mm) tube minimizes obstruction, meeting the Americans With Disabilities Act (A.D.A.) requirements. The interior mechanism retracts the latch bolt with a simple push of the actuation bar, while an optional keyed access device allows for secure entry. With a special dogging feature, the handle can remain unlocked during business hours, providing convenience without sacrificing security. For enhanced access control, it can be paired with electronic strikes. Elevate your glass door installations with this versatile, stylish panic handle from C.R. Laurence.
Blumcraft Brushed Stainless Right Hand Reverse Rail Mount Keyed Access “D” Exterior, Top Securing Panic Handle
- UL, ULC, and ANSI/BHMA Certified
- Elegant Tubular Design
- Wide Selection of Exterior Fixed Handles For 1/2″ (12 mm) or 3/4″ (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available by Special Order
- Custom Sizes Ship within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your ‘all-glass’ door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The operating mechanism concealed within the vertical tubing of our Panic Handles retracts the latch bolt when the interior actuation bar is pushed. An optional exterior Keyed Access Device can be installed to allow entry, and a special dogging feature allows the doors to remain unlocked during business hours. Electronic Strikes are also available, providing a variety of secured entry options.
CRL manufactures a complete line of Panic Handles designed with the ‘all-glass’ door in mind. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2″ or 3/4″ (12 or 19 mm) tempered glass doors.
The most popular of these Panics is our PA100 Series. They provide a solution to the strict Americans With Disabilities Act (A.D.A.) Codes that confront every manufacturer and installer of ‘all-glass’ doors.
The interior portion of the device is a slender 1-1/4″ (32 mm) tube stretching across the door and then gently turning upwards to the top of the door, eliminating any interference at the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands.
All PA100 Series Panic Handles come with a ‘dogging’ feature that allows you to lock the device in the open position by simply sliding a lever, giving free access during business hours. They also can be used in conjunction with an Electric Strike, allowing for remote keyless entry. For your convenience, Custom Headers are available with all strike hardware installed.
For additional information, contact CRL Technical Sales from the home page by clicking on Contact Us, and then click on Technical Sales for Commercial Products. The latest catalog pages with complete details on our CRL-Blumcraft® Access Handle product line can be found here.” target=”_blank”>https://catalogs.crlaurence.com/AH18-Glass-Entrance-Systems/254/”>here.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Application: DRS Rail Mount
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Exterior Access: Yes
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Handing: Right Hand Reverse
Keying: Cylinder Outside Only
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: None
Resources
- Blumcraft Access Control Handles Specifications
- Blumcraft Access Control Handles Specifications.doc
- Blumcraft Panic Handles System CAD Drawings.dwg
- Blumcraft Panic Handles System CAD Drawings.pdf
- Blumcraft Security Latch Product Information
- CRL Stainless Steel Disclaimer
- Handle Warranty
- LEED Statement
- PA100D DB100D DH100D Specifications
- Panic Handles – Hollow Metal Doors Installation Instructions
- Panic Hardware Certificate of Compliance
- Panic and Deadbolt Handle – 100 and 110 Series Quote Request Form
- Quote and Ordering Form panic.pdf
- Specifications specdrs.doc
