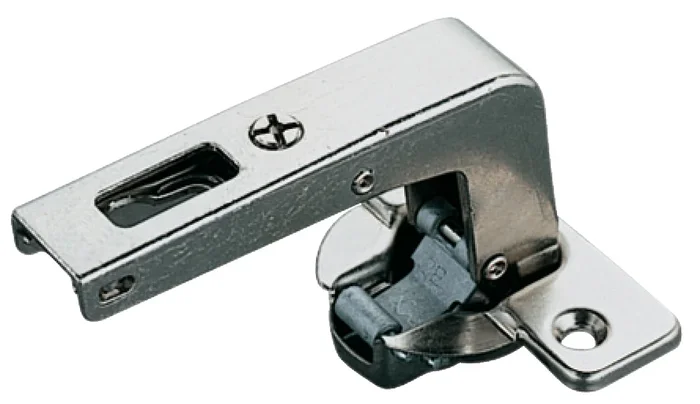

Blind Corner Concealed Hinge – Salice, 110 Opening Angle, Nickel-Plated by Hafele

Description

Hafele 329.35.510 Salice Blind Corner Concealed Hinge, 110 Angle, Nickel-Plated

Hafele 329.35.510 Blind Corner Concealed Hinge offers an innovative solution for cabinetry in blind corner applications. This hinge features a 110° opening angle, allowing for easy access to hard-to-reach spaces while maintaining a sleek aesthetic. The nickel-plated finish not only enhances durability but also adds a modern touch to your furniture. Designed for wood doors, this model (C2R6N99AM) utilizes a reliable self-close mechanism with an automatic closing spring, ensuring that doors close securely every time. The hinge is equipped with a cup drilling depth of 11.00 mm and a diameter of 35.00 mm, making installation straightforward with cup drilling. Its adjustable facilities include side adjustment (4.5 mm), height adjustment (-2 to +2 mm), and depth adjustment, providing flexibility during installation. The cup fixing allows for easy mounting in drilled holes, compatible with all Metalla 510 A and Metalla 510 SM mounting plates. Constructed from steel and zinc alloy, this hinge guarantees longevity and performance. Perfect for professionals and discerning homeowners alike, the Hafele 329.35.510 Blind Corner Concealed Hinge is essential for maximizing space and functionality in modern cabinetry designs.

Salice – Blind Corner Concealed Hinge, 110 Opening Angle, Nickel-Plated

cup fixing: For screw fixing, Self-close, press fitting, model C2R6N99AM

Attributes

Adjustment facility: Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm

Area of application: Blind corner

Color/finish: nickel plated

Concealed hinge version: blind corner application

Cup drilling depth: 11.00 mm

Cup drilling Ø: 35.00 mm

Cup fixing: For mounting in drilled hole

Door processing for assembly: with cup drilling

Drilling pattern: 45/9.5

For door material: wood

Installation: Door on cabinet with slide-on system A or quick fixing system SM

Lock function: With automatic closing spring

Material: Cup: Steel, Hinge arm: Zinc alloy

Model No.: C2R6N99AM

Opening angle: 110°

Order reference: Suitable for all Metalla 510 A and Metalla 510 SM mounting plates
