Description

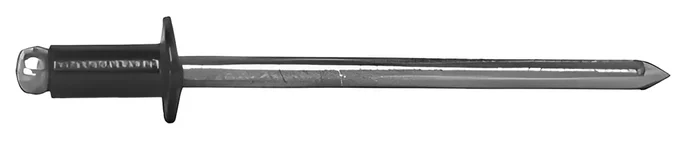

CRL ABA42BL Black 1/8″ Aluminum Mandrel Rivet, 1/16″ to 1/8″ Grip, Pack of 10,000
C.R. Laurence ABA42BL Black 1/8″ Diameter, 1/16″ to 1/8″ Grip Range Aluminum Mandrel and Rivet in Packs of 10,000 is an essential fastening solution for a wide variety of applications. These blind rivets feature a solid metal mandrel inserted into a tubular metal rivet, creating a robust fastener when combined with a rivet setting tool, like the CRL Marson® HD Gun. Their design allows for easy installation in aligned holes, resulting in a secure hold that won’t back out or shake loose, making them ideal for both high production assembly and low volume projects. With a grip range of 1/16″ to 1/8″, these rivets accommodate various material thicknesses, ensuring reliable joint strength. The low head profile and minimal back-up space make them suitable for joining thin gauge or dissimilar materials, while the black finish offers a sleek aesthetic. Each rivet conforms to industrial fastener standards, ensuring you meet all necessary compliance requirements. Available in packs of 10,000, these rivets are perfect for professionals seeking efficiency and quality in their fastening solutions. Choose C.R. Laurence ABA42BL for your next project and experience the versatility and reliability that blind rivets bring to the table.
Black 1/8″ Diameter, 1/16″ to 1/8″ Grip Range Aluminum Mandrel and Rivet in Packs of 10000
- Most Popular Sizes Available in Three Colors
- Any Color Available on Custom Order
CRL Blind Rivets in Cases are in standard pack quantities as supplied from the factory.
A blind rivet is a simple device for holding materials together. A solid metal mandrel is inserted into a tubular metal rivet, and supplied as an assembled unit. This becomes a fastener when the mandrel and rivet are inserted into aligned holes in the materials to be joined. The mandrel is pulled into the rivet by a rivet setting tool CRL Marson® HD Gun(commonly known as a rivet gun) to create a counterhead, then the mandrel is snapped off, leaving the finished fastener. This effective fastening system lends itself to virtually hundreds of applications, joining materials of many thicknesses and varieties. Blind Rivets were originally thought of as a specialty fastener for use in blind applications only, but they have proven their versatility in both high production assembly, and low volume piece work situations. Few fastening systems offer the flexibility of design, and uniformity of results that Blind Rivets do. Blind Rivets feature: low head profile and minimum back-up space; join thin gauge or dissimilar materials; vibration-proof – won’t back out or shake loose; positive fastening of painted or finished components without possibility of surface marring; conform to industrial fasteners institute and appropriate government standards and specifications. Add to these advantages their ease of use, and you may begin to realize how using Blind Rivets could benefit your profit picture.
To find the proper catalog number, check the grip range and diameter below. When selecting the proper blind rivet to meet your requirements, take into account the joint strength, joint thickness, and nature of materials to be joined. Also consider the type of head that best suits the intended rivet application. The diameter of rivet you select will depend on the desired joint strength. Blind Rivets develop joint strength in two ways: By clinch of the counterhead and by compression of the rivet body against the walls of the hole. Rivet grip is the combined thickness of the materials being fastened. Select the rivet length by choosing one whose grip range includes the thickness of the materials to be joined. One length of rivet can be used for a range of material thicknesses. It is better to choose a rivet that is too long than one that is too short. You should consider also the materials to be joined. If using a soft material, you may need to use a rivet spacer , thereby increasing the requirement for the grip range slightly.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Case Quantity: 10,000
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1/8 in. (3 mm)
Drill Hole: 0.129 in. To 0.133 in., #30(3.28 mm To 3.38 mm, #30)
Finish/ Color:: Black
Shipping Limitations: None
Thickness: 1/16 in. To 1/8 in. (Grip Range)(2 mm To 3 mm (Grip Range))
