Description

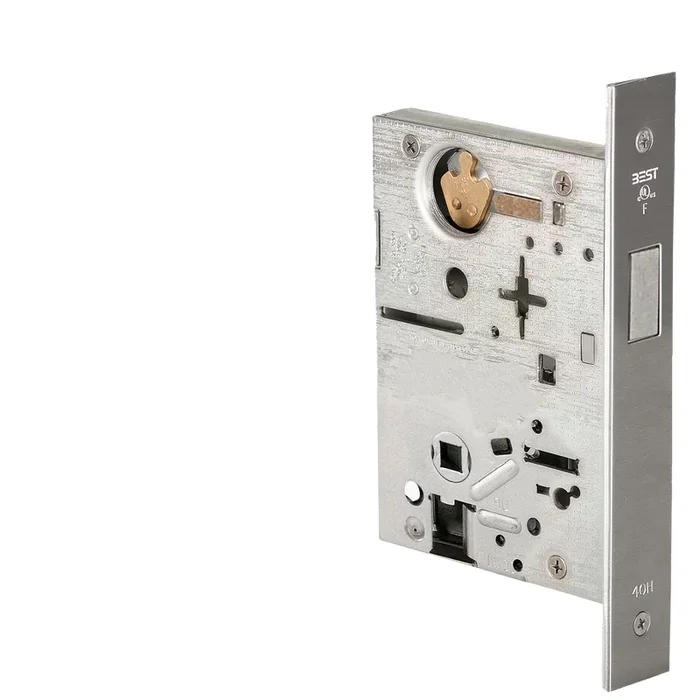

Best 45HCAAD630 Mortise Case Only
BEST 45HCAAD630 Mortise Case Only is a Grade 1 mortise deadlock lockbody designed for superior strength and security in commercial environments. With its satin stainless steel finish, this lockbody not only offers durability but also enhances the aesthetic appeal of any door. Field reversible for easy installation, the 45H Series Mortise Lock showcases advanced features and versatility, making it an ideal choice for high-traffic applications. The 45HCAAD630 is constructed from premium materials, including a solid one-piece stainless steel latch that provides 50% more surface contact with the strike, enhancing the lock’s overall strength. Its roller bearing hub mechanism ensures reliable, smooth operation, while the precision-engineered latch curve reduces wear, extending the cycle life. Installation is simplified thanks to the self-aligning trim and the reversible latch that rotates 180 degrees, allowing for quick handing changes without the need to open the lockcase. With a 1″ deadbolt projection and an ANSI function of F17 – Single Deadlock, the 45HCAAD630 meets rigorous security standards. This lock is also fire-rated for up to three hours, ensuring safety without compromising on security or performance. Elevate your door hardware with the reliability and innovation of BEST.
Mortise Case Only
Grade 1 Mortise Deadlock Lockbody Only, Satin Stainless Steel Finish, Field Reversible
The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST’s 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
- Superior strength and security. A solid one-piece stainless steel latch that provides 50% more surface contact with the strike to make the lock stronger and more secure.
- Reliable performance. The45H series locks deliver smooth, wear-resistant operationvia a roller bearing hub mechanism,
- Premium materials. Featuring a case,cover, and armored frontmanufactured from 0.095″ cold rolled steel with a corrosion-resistant coating.
- Varied aesthetics. The 45H series is visually compatible with different architectural styles and aesthetics due to itswide variety of lever styles and trims.
- Enhanced durability. The precision-engineered curve on the latch reduces wear to the strike andenhances cycle life.
- Easy to install. The reversible latch rotates 180 degrees, enabling easy handing changes without opening the 45H series case. The self-aligning trim makes installation easy, fast and accurate.
Attributes
Manufacturer surcharge: 7.0%
Ansi Function: F17 – Single Deadlock
Application: Lock Body Only
Baa Qualified: Yes
Base Series: 45H
Bolt Projection: 1″ Deadbolt
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Lock Body Only
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 630/US32D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: AD-Deadlock
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Limited Warranty: Limited Lifetime
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Height: 3″
Pack Height 2: 12.25″
Pack Length: 11.5″
Pack Length 2: 12.75″
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75″
Pack Width 2: 10.5″
Product Height: 3″
Product Length: 11.5″
Product Width: 9.75″
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
