Description

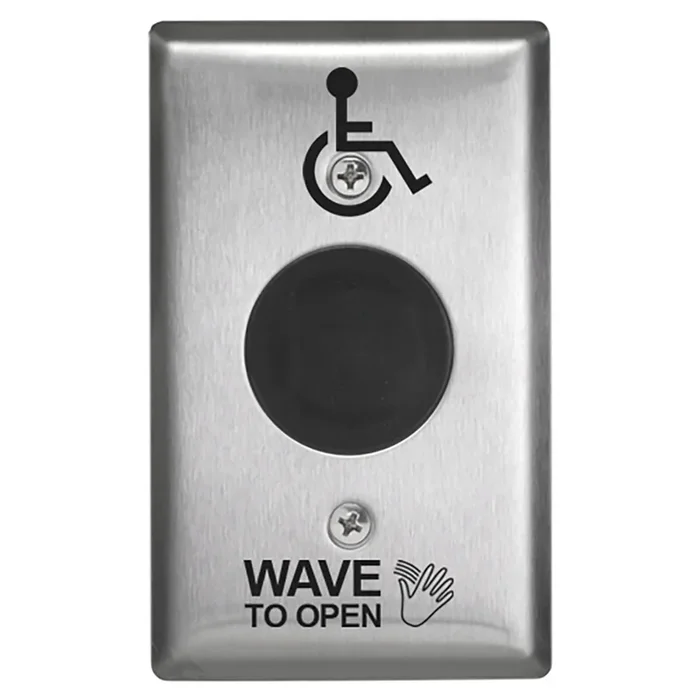

Camden CM-333/42SL1 Battery Power Switch with 1 Relay

Camden CM-333/42SL1 Battery Power Switch with 1 Relay offers an innovative solution for hands-free door activation in commercial environments. This touchless switch employs advanced active infrared technology with a sensing range of 1 inch to 12 inches, making it ideal for maintaining hygiene and accessibility. The stainless steel finish, adorned with a hand icon and ‘Wave to Open’ text, ensures it blends seamlessly into your facility’s design while providing clear usability features, including a wheelchair symbol. Designed for ease of installation, the CM-333 can be utilized in both new and retrofit applications, delivering reliable performance with options for battery power or wired connections. Each unit includes two ‘AA’ lithium batteries, ensuring longevity with a battery life of up to two years with typical usage. The adjustable time delay of 3 to 30 seconds allows for customization based on specific operational needs. With its compact dimensions of 5.25″ in length, 5.5″ in width, and a height of 2″, it fits perfectly in a standard 1-gang mounting plate. The versatile relay action can be set to fail-safe or fail-secure, providing flexibility for various security requirements. The Camden CM-333/42SL1 is a robust choice for enhancing accessibility and operational efficiency in modern building designs.

Battery Pwr Switch W/1 Relay

SureWave CM-333 Series Touchless Switch, 1″ to 12″ Range, 1 Relay, Single Gang Stainless Steel Hand Icon/’Wave to Open’ Text/Wheelchair Symbol Faceplate, Includes 2 ‘AA’ Lithium Batteries, Stainless Steel Finish

CM-330 Series are 2nd generation hands-free switches from Camden. We started by designing a switch to provide superior door activation in new and retrofit access control and automatic door applications, and then built in our industry-leading experience in serving thousands of installations. The result is an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.

Hands-free switches providing superior access, simple installation, and options for both wired and wireless performance.

CM-324 Serieswired, single-relay,hands-free switches featurean operating range of 1 to 30 inches, adjustable time delay of 1 to5 seconds, and providesuperior performance in all ambient lighting conditions.

CM-325 Series hands-free switches are designed for use in healthcare and facilities where highly reflective surfaces may cause standard touchless switches to falsely activate.

CM-330 Series are second-generation hands-free switches providing an unprecedented level of easy installation (in any application), rock solid performance (wired & wireless) and years of trouble free service.CM-330 and CM-333 battery powered models supplied with (2) AA alkaline batteries.

• Technology:Active Infra-red, utilizing microburst sensing technology
• Voltage:12-24V AC/DC
• Contact Type:
  • CM-331/333/324/325:(1) SPDT Form ‘C’
  • CM-332:(2) SPDT Form ‘C’
• Contact Rating:
  • CM-331/332/333:3 Amps @ 30 V
  • CM-324/325:5 Amps @ 30 V
• Current Draw:
  • CM-331/332:40 mA
  • CM-324/325:60 mA
• Wireless:
  • CM-330:Built-In
  • CM-331/332/333:Optional Plug-In
• Wireless Frequency:
  • CM-330 Series:915 Mhz. Lazerpoint RF™ Spread Spectrum Wireless
• Battery:
  • CM-330/333:
    • (2) ‘AA’ alkaline,-0ºF to +153º F (-18ºC to +85º C)
    • (2) AA Lithium Batteries (optional),-4ºF to +153º F (-20ºC to +85º C)
• Battery Life:Alkaline: 2 years with 100 activations per day
• Adjustable Operating Range:
  • CM-331/332:1″- 28″ (25mm-711mm)
  • CM-330/333:1″-12″ (25mm-304mm)
  • CM-324:1″-30″ (25.4mm-762mm)
  • CM-325:Min. 2″ (51mm) Hand, Max. 18″ (45mm) Mirror
• Time Delay:
  • CM-330/331/332/333:3-30 Seconds
  • CM-324/325:1-5 Seconds
• Operation:Selectable Fail Safe/Fail Secure
• Montion Sensing Modes:
  • CM-331/332/333:Momentary, Momentary with Alarm, Maintained
  • CM-330/324/325:Momentary
• Relay Operating Modes:
  • CM-332:Event, Sequence, Security, Toggle
  • CM-331:Event, Toggle
  • CM-330/333/324/325:Event
• Input:CM-331/332/333:REX, Door Contact
• Blue/Green/Red Light Ring:CM-331/332:Optional

Attributes

Application: Hand Icon, ‘Wave to Open’ Text, and Wheelchair Symbol

Base Series: CM-333 Series

Battery: 2 ‘AA’ Lithium Batteries

Commercial Residential: Commercial

Country of origin: Canada

Delay Duration: Adjustable 3 to 30 Second Time Delay

Environment: Indoor

Finish: Stainless Steel

Finish Family: Matte Silver

Inputs: Request to Exit

Installation: Commercial

Limited Warranty: 3 Years

Mounting Plate Size: 1 Gang

Operating Voltage: 12/24V AC/DC

Origin: Canada

Outputs: Fail Safe or Fail Secure

Pack Qty: 1

Product Height: 2″

Product Length: 5.25″

Product Width: 5.5″

Range: 1 Inch to 12 Inches

Relay Action: Multi Function

Relay Type: Form C

Relays: 1

Sensor Technology: Active Infrared Air

Series: Camden SureWave Touchless Switches

Ship Weight: 0.4 lbs.

Subtype: Touchless Actuators

Type: Sensors, Switches, Relays, Timers

Unit of Measure: Each

Upc: 6.70454E+11

Upc Code: 6.70E+11

Wireless: Optional
