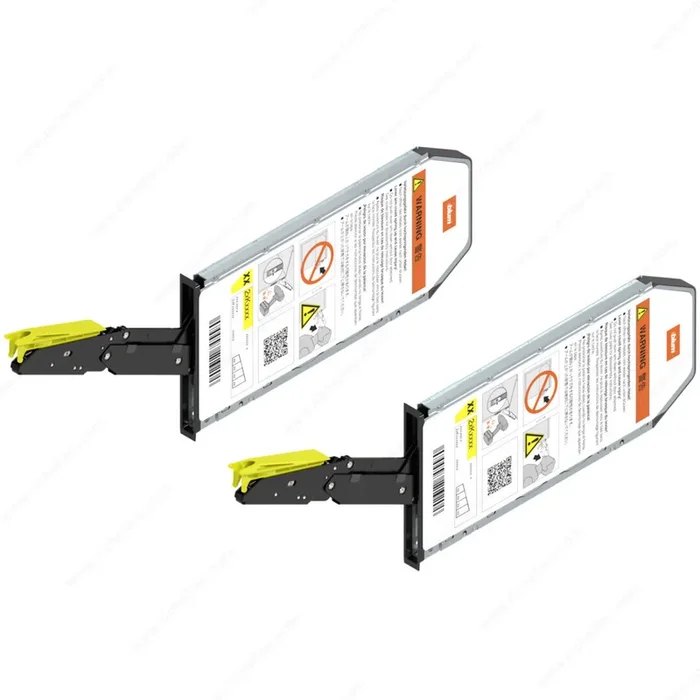

Richelieu 24K2300T181 AVENTOS HKi Opening Mechanism Instructions
Richelieu 24K2300T181 AVENTOS HKi Opening Mechanism offers a sophisticated solution for maximizing cabinet functionality with its innovative lift-up opening design. This narrow fitting can be installed fully or partially within side panel thicknesses ranging from 16 mm (5/8 in) to 25 mm (1 in), providing flexibility in various cabinet dimensions. It accommodates cabinet heights up to 600 mm (23 5/8 in) and widths reaching 1,800 mm (70 7/8 in), making it suitable for a range of applications. The AVENTOS HKi features a sleek Onyx black finish, with the integrated lift system remaining invisible when closed. Upon opening, the elegant visible parts are revealed, enhancing the aesthetic appeal of any cabinetry. Installation options include a partially recessed version or fully recessed variations, allowing for tailored fit within your design. With a maximum load capacity of 39.7 lbs, this mechanism is engineered for durability and efficiency. It boasts impressive motion technology, featuring Touch Release and Soft-Close functionality, ensuring seamless operation. Additionally, the hinge opening angle of +107° facilitates easy access. The minimum internal depth required for installation is 10 5/8 in, making it a versatile choice for modern cabinetry solutions.
AVENTOS HKi Opening Mechanism
With AVENTOS HKi, a narrow device, the fitting can be housed either fully or partially within side panel thicknesses ranging from 16 mm (5/8 in) to 25 mm (1 in). You have great flexibility in terms of dimensions and can use the most common ones: cabinet bodies can reach 600 mm (23 5/8 in) in height and 1 800 mm (70 7/8 in) in width. Various installation options for the mechanism are available: choose a partially recessed version with cover 1, or opt for fully recessed versions, milled at two levels 2 or more with insertion plate 3. When closed, the integrated lift system fitting remains invisible. Upon opening, the elegant Onyx black visible parts of AVENTOS HKi are revealed.
Note: face weight of up to 18 kg (40 lbs) max. with two power reservoirs!
Attributes
Brand: Blum
Compatible with SERVO-DRIVE: No
Door Height: Max. 23 5/8 in*
Door Length: Max. 70 7/8 in*
Finish: Onyx Black
Hinge Opening Angle: +107°
LF Power Factor: 420-1610
LF Power factor: 420-1610
Load Capacity: 39.7 lb*
Material: Steel
Minimum internal depth of the enclosure: 10 5/8 in*
Motion Technology: Touch Release, Soft-Close
Product #: 24K2300T181
Product range: AVENTOS
Specific Range(s): AVENTOS HKi
Type of Opening: Lift-Up Opening
