Description

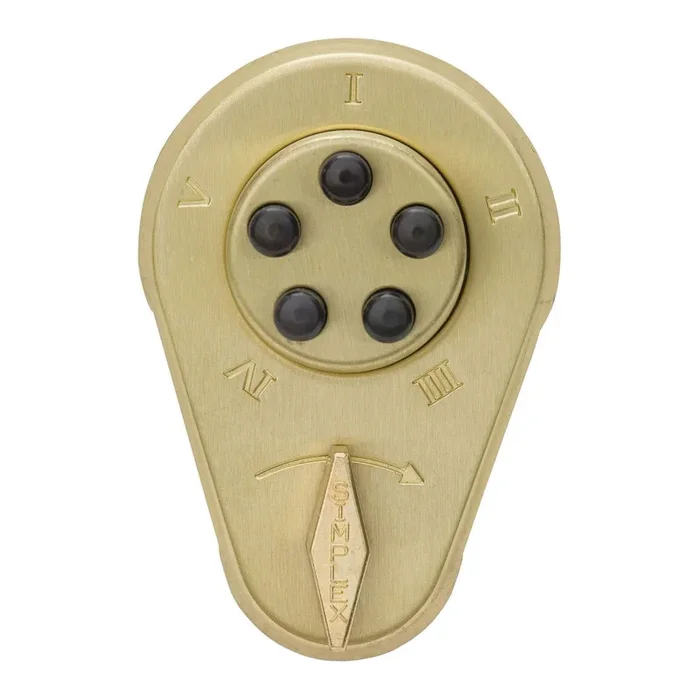

Dormakaba 9350000-04-41 Thumbturn Auxiliary Lock

Kaba Access Dormakaba 9350000-04-41 Auxiliary Lock w/Thumbturn combines robust security with user-friendly design, making it an excellent choice for both commercial and residential applications. This combination deadlatch accommodates door thicknesses ranging from 1-3/8″ to 1-1/2″ and features a latch holdback and key override for added convenience.Constructed with an all-metal cast front housing, this lock is both force-resistant and equipped with a clutch-protected thumbturn. The vandal-resistant numeric keypad, featuring solid metal pushbuttons, ensures durability while maintaining ease of access. Field reversible for either right-hand or left-hand doors, it provides versatility in installation.With a backset of 2-9/16″ for outswing doors and 2-1/2″ for inswing doors, the lock includes strike plates tailored for both configurations. A 1″ deadbolt and ⅜” deadlocking spring latch enhance security, while weather-resistant properties ensure longevity in various environments.Installation is straightforward, and the lock comes with a 1-year warranty, underscoring Kaba Access’s commitment to quality. Ideal for anyone looking for a secure, keyless entry solution, the Dormakaba 9350000-04-41 is a practical addition to any door hardware lineup.

Auxiliary Lock w/Thumbturn

Combination Deadlatch, 1-3/8″ to 1-1/2″ Thick Doors, Latch Holdback, Key Override, Satin Brass

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Deadbolt models must be manually relocked.

• Construction:All metal cast front housing, force-resistant, clutch-protected thumbturn, metal exterior trim plate
• Numeric Keypad:Vandal resistant, solid metal pushbuttons
• Handing:Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation
• Backset:2 9⁄16″ (65 mm) for outswing doors, 2½” (64 mm) for inswing doors
• Latch:1″ (25 mm) deadbolt; ⅝” deadlocking spring latch
• Strike:Includes strike plate for outswing doors, cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit
• Durability:Weather resistant
• Warranty:1-year warranty

Attributes

Manufacturer surcharge: 7.0%

Base Material: Brass

Commercial Residential: Commercial

Finish: 606/US4

Installation: Commercial

Lock Platform: Rim Latch

Pack Qty: 1

Series: Simplex 900 Series

Series Name: Simplex

Subtype: Tubular Deadbolts and Deadlatches

Type: Integrated and Pushbutton

Unit of Measure: Each

Resources

• Simplex 900 Series Cut Sheet
