Auto Opener Module Kit AL by LCN – Efficient Door Operation

Description

LCN 6440-2210 689 Auto Opener Module Kit AL

LCN 6440-2210 689 Auto Opener Module Kit AL offers a compact, low-energy solution for enhancing accessibility and touchless entry on interior doors. This conversion kit includes a gearmotor assembly, mounting plate, screws, and a plastic cover, ensuring a seamless installation. The kit is complemented by a power supply, door loop, and 30 feet of copper wire, along with the 8310-2210 battery-powered touchless RF actuator kit, which features two single gang faceplate transmitters, two surface mount boxes, and one receiver. Designed with flexibility in mind, the LCN 6440 is compatible with existing openings and can repurpose the 4040XP mechanical closer. For new installations, it allows for a fully customized setup to meet specific requirements. The modular design simplifies upgrades, making it suitable for both renovations and new constructions. Key features include a safe 24V input, configurable power options, and user-friendly electronic adjustments. The system is equipped with fire input for safety and is certified to UL 10C, UL 325, and ANSI Standard A156.19. With a limited warranty of two years, the LCN 6440-2210 is a reliable choice for commercial applications, ensuring both functionality and compliance with accessibility standards.

Auto Opener Module Kit AL

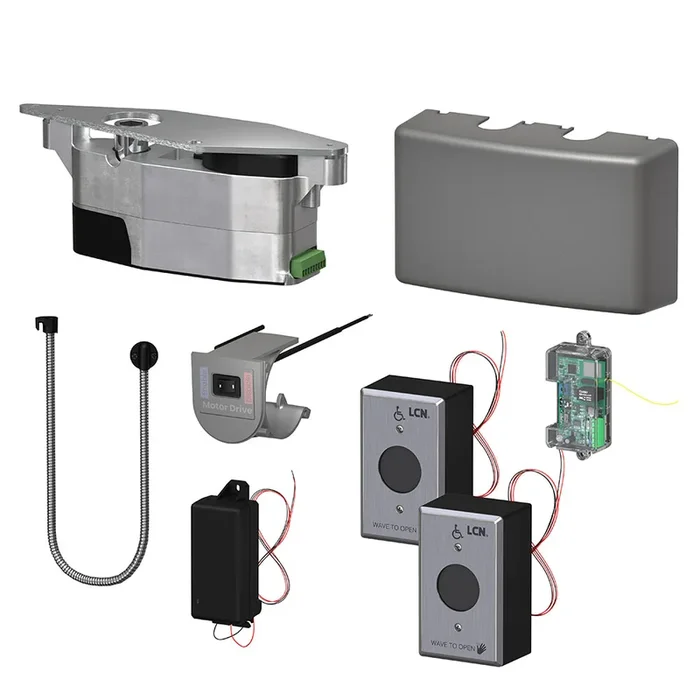

COMPACT Low Energy Auto Operator Module Kit (Conversion Kit Only), Gearmotor Assembly, Mounting Plate and Screws, Plastic Cover, Power Supply, Door Loop, 30′ Copper Wire, Includes 8310-2210 Battery Powered Touchless RF Actuator Kit (2 Single Gang Faceplate Transmitters, 2 Surface Mount Boxes, 1 Receiver), Aluminum Painted Finish

The LCN 6400 COMPACT Series low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment. The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

The unique modular design makes the COMPACT Series simple and cost-effective for upgrading new or existing openings.

The LCN 6400 COMPACTSeries low energy automatic operator can help your facility meet basic needs related to accessibility and touchless access on interior openings. Whether you are upgrading a single opening, renovating a portion of your building or constructing a new facility, the COMPACT series enables you to promote a healthy and accessible environment.

The unique modular design makes the COMPACT Series simple and cost-effective. The core elements of the solutions are a motor gearbox assembly, a 4040XP mechanical closer and wireless or hardwired actuators. For existing openings, your can repurpose the 4040XP closer. For new openings, you can configure a complete solution to meet your needs.

• 24V input for safe door-mount applications
• Configurable power input to allow for simple wall plug-in or external power supply
• Compact user interface for electronic feature adjustments
• Simple calibration set-up with visible and audible feedback
• Adjustments via mechanical closer to meet closing force preferences
• Power boost to overcome interior stack pressure and allow for lower spring settings
• Compatible with 3 different 4040XP mounting configurations
• Fire input to deactivate actuation upon signal
• Dedicated input for actuation signal (hardwired or wireless receiver)
• Certified to UL 10C, UL 325 and UL 228
• Certified to ANSI Standard A156.19
• Compliant with ANSI Standard A117.1

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.19, A117.1

Application: Conversion Kit Only

Arm Type: Double Lever Arm, with PA Bracket

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Door Weight: 254 lbs. Push, 198 lbs. Pull

Finish: 689/US28

Finish Family: Matte Silver

Installation: Commercial

Limited Warranty: 2 Years

Mounting Group: Electrohydraulic

Mounting Location: Push or Pull Side

Mounting Style: Tri Mount

Origin: USA

Pack Qty: 1

Physically Handicapp: Yes

Restrictions: None

Series: 6400 Series COMPACT Auto Operators

Subtype: Door Operators

Type: Surface

Ul Listing: UL 10C, 228/325

Unit of Measure: Each

Voltage: 2A @ 24VDC

Resources

• 6400 Series COMPACT Auto Operators Cut Sheet
• Affordable Touchless Access with the LCN COMPACT Automatic Operator
• Expand Seamless Access with the LCN COMPACT Automatic Operator
• Introducing the LCN COMPACT Automatic Operator
• LCN 6400 Series Data Sheet
• LCN 6400 Series Installation Guide
• LCN 6400 Series Sell Sheet
• LCN Touchless Access Solutions Brochure
• LCN Touchless Access Solutions Sell Sheet
• Von Duprin Finishes Chart
• Whiteboard: LCN COMPACT Automatic Operator
