Arrow Lock AM02 TH 26D Privacy Mortise Lock

Arrow Lock AM02 TH 26D Mortise Lock – Privacy is designed for high-traffic areas requiring both security and functionality. This privacy mortise lock features a T knob and an H escutcheon, finished in a sleek satin chrome that complements various architectural styles. Engineered for heavy-duty use, it stands up to the demands of commercial, institutional, and industrial environments, making it ideal for schools, hospitals, and office buildings. The lock case is crafted from heavy gauge steel with a corrosion-resistant zinc dichromate finish. Its field-reversible design allows for easy handing adjustments without disassembling the lock, enhancing versatility. With a standard door thickness of 1-3/4 inches and a backset of 2-3/4 inches, the Arrow AM02 fits seamlessly into most applications. The stainless steel latchbolt features a unique anti-friction insert, ensuring smooth operation, while the one-piece deadbolt offers additional security with a 1-inch throw. Accommodating various trim designs and functions, this lock meets or exceeds ANSI Grade 1 performance standards. Backed by a five-year limited warranty, the Arrow Lock AM02 combines durability and reliability, making it a smart choice for any security-conscious installation.

Mortise Lock – Privacy

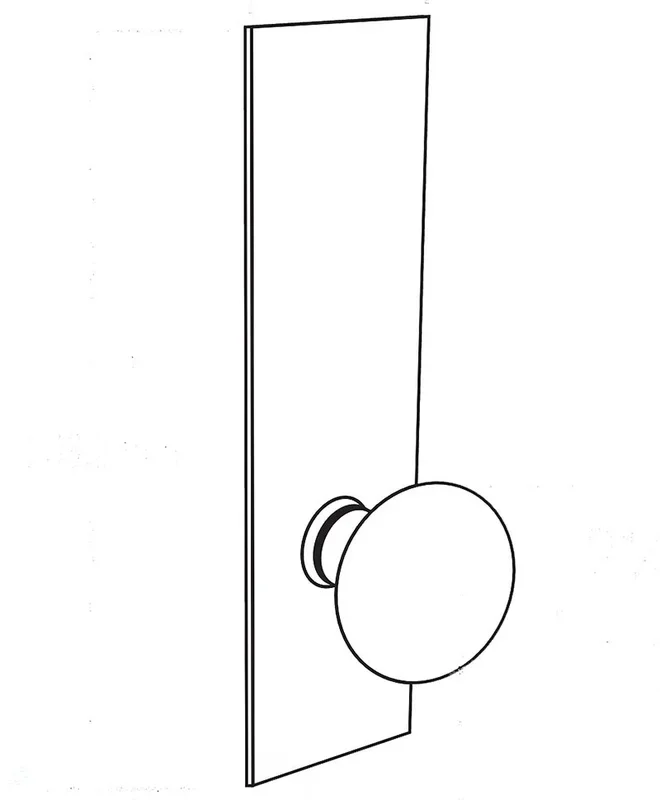

Privacy Mortise Lock, T Knob, H Escutcheon, Satin Chrome

Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.

The AM Series is engineered for strength and performance, and manufactured to exacting standards.

The Arrow AM Seriesmortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.

• Handing – Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness – 1-3/4″ (4mm) standard.
• Backset – 2-3/4″ (70mm).
• Lockcase – Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm).
• Armored Front – Heavy gauge steel, 8″ (203 mm) x 1-1/4″ (32mm) x 3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).
• Faceplate – Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
• Latchbolt – Stainless steel, 2 piece mechanical with anti-friction insert. 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
• Auxiliary Latchbolt – 9/16″ (14mm) effective throw and 3/8″ (10mm) effective auxiliary latch deadlocking.
• Deadbolt – One-piece stainless steel, 19/32″ (15mm) x 1 1/4″ (32mm) x 1″ (25mm) throw.
• Hub – Knob: nickel steel, 5/16″ (8mm) and 9/32″. Lever: nickel steel, 5/16″ (8mm).
• Spacing – Center to center, hub to cylinder: 3-5/8″ (92mm). Center to center, hub to turnpiece 2-7/16″ (62 mm).
• Strike – Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8″ (124mm) x 1-1/4″ (32mm) 1-1/8″ (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. Keys – Two nickel silver standard. Keying Features Available: • Master keying • Construction master keying • Visual key control • Concealed key control • Interchangeable core (IC) – Pointe, Choice Base, Plus, and Flex
• Warranty – Five-year limited.
• Standardized Case – One size case for uniform mortising.
• Reversibility – Locks are easily reversed for change of hand.
• Self Aligning Trim – Standard with rose trim. Eliminates bind, facilitates installation, gives support and saves labor.
• Designs – Broad spectrum of designs including lever handles, knobs for roses and escutcheons in architectural finishes.
• Complete Range of Functions – To meet all requirements.

Attributes

Ansi Function: F19 – Privacy/Bed/Bath

Application: Complete Lock

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Door Thickness: 1-3/4″

Finish: 626/US26D

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 02-Privacy

Grade: Grade 1

Handing: Field Reversible

Leverknob Design: T – Knob

Limited Warranty: 5 Years

Lock Face Size: 8″ x 1-1/4″

Pack Height: 4.5″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 239.34 in³

Pack Width: 5.75″

Product Height: 8″

Product Length: 2.88″

Product Width: 2.25″

Roseescutcheon Design: H – Escutcheon

Screws: Combination

Series: AM Series Mortise Locks

Ship Weight: 6 lbs.

Std Strike Height: 4-7/8″

Std Strike Number: 460

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
