Description
Arrow Lock AM19 BD 26D Dormitory Mortise Lock
Arrow Lock AM19 BD 26D Mortise Lock – Dormitory combines security and durability for high-traffic environments such as schools and hospitals. Designed for heavy-duty use, this exit mortise lock features a robust lock case made from heavy gauge steel, finished with zinc dichromate for excellent corrosion resistance. The lock is easy to install and maintain, with a standardized case that simplifies mortising. This model is field-reversible, allowing for quick handing changes without disassembly, and accommodates standard 1-3/4″ doors. The latchbolt, crafted from stainless steel, offers a reliable 3/4″ throw with an anti-friction insert, while the auxiliary latchbolt enhances security. The one-piece deadbolt provides an additional layer of protection with a 1″ throw. The Arrow AM Series is built to meet or exceed ANSI Grade 1 performance standards, ensuring peace of mind for commercial applications. It comes with a variety of trim designs, including the B Knob and D Rose, and is available with a range of keying options, including master keying and interchangeable core systems. With a five-year limited warranty, the Arrow Lock AM19 BD 26D Mortise Lock – Dormitory is an ideal choice for those seeking reliability, high performance, and low maintenance in a security solution.
Mortise Lock – Dormitory

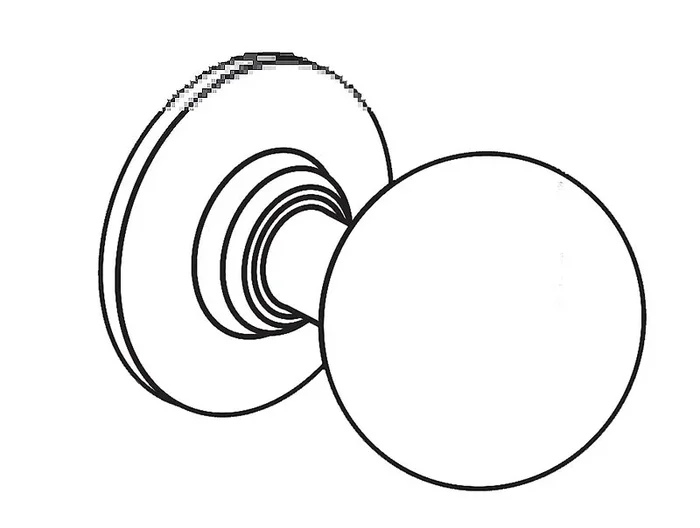

Dormitory, Exit Mortise Lock, B Knob, D Rose, Satin Chrome
Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.
The AM Series is engineered for strength and performance, and manufactured to exacting standards.
The Arrow AM Seriesmortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.
- Handing – Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness – 1-3/4″ (4mm) standard.
- Backset – 2-3/4″ (70mm).
- Lockcase – Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm).
- Armored Front – Heavy gauge steel, 8″ (203 mm) x 1-1/4″ (32mm) x 3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).
- Faceplate – Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
- Latchbolt – Stainless steel, 2 piece mechanical with anti-friction insert. 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Auxiliary Latchbolt – 9/16″ (14mm) effective throw and 3/8″ (10mm) effective auxiliary latch deadlocking.
- Deadbolt – One-piece stainless steel, 19/32″ (15mm) x 1 1/4″ (32mm) x 1″ (25mm) throw.
- Hub – Knob: nickel steel, 5/16″ (8mm) and 9/32″. Lever: nickel steel, 5/16″ (8mm).
- Spacing – Center to center, hub to cylinder: 3-5/8″ (92mm). Center to center, hub to turnpiece 2-7/16″ (62 mm).
- Strike – Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8″ (124mm) x 1-1/4″ (32mm) 1-1/8″ (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. Keys – Two nickel silver standard. Keying Features Available: • Master keying • Construction master keying • Visual key control • Concealed key control • Interchangeable core (IC) – Pointe, Choice Base, Plus, and Flex
- Warranty – Five-year limited.
- Standardized Case – One size case for uniform mortising.
- Reversibility – Locks are easily reversed for change of hand.
- Self Aligning Trim – Standard with rose trim. Eliminates bind, facilitates installation, gives support and saves labor.
- Designs – Broad spectrum of designs including lever handles, knobs for roses and escutcheons in architectural finishes.
- Complete Range of Functions – To meet all requirements.
Attributes
Ansi Function: F13 – Dormitory
Application: Complete Lock
Base Material: Brass or Bronze
Bolt Projection: 3/4″
Commercial Residential: Commercial
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 19-Dormitory/Exit
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Leverknob Design: B Knob
Limited Warranty: 5 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Pack Height: 4.5″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 239.34 in³
Pack Width: 5.75″
Pins: 6
Product Height: 8″
Product Length: 2.88″
Product Width: 2.25″
Roseescutcheon Design: D Rose
Screws: Combination
Series: AM Series Mortise Locks
Ship Weight: 6 lbs.
Std Keyway: A
Std Strike Height: 4-7/8″
Std Strike Number: 460
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- AM Series / BM Series Cut Sheet
- AM Series Mortise Locks Cut Sheet
- AM/BM Series Mortise Lock Catalog
