Arrow Mortise Lock for Dormitory – Durable Door Hardware

Description

Arrow Lock AM19 TH 26D Dormitory Mortise Lock

Arrow AM19 TH 26D Mortise Lock – Dormitory offers a robust solution for security in high-traffic environments such as schools, hospitals, and commercial buildings. Designed specifically for dormitory and exit applications, this heavy-duty lock features a T knob and H escutcheon in a sleek satin chrome finish. Engineered for durability, the lock case is made from heavy gauge steel with a corrosion-resistant zinc dichromate finish, ensuring long-lasting performance. The AM19 lock is field reversible, allowing for easy handing adjustments without disassembly. It accommodates standard door thickness of 1-3/4″ and has a backset of 2-3/4″. The stainless steel latchbolt includes an anti-friction insert, providing smooth operation with a 3/4″ throw. Additionally, it features a one-piece stainless steel deadbolt for enhanced security. With a comprehensive selection of trim designs and functions, this lock meets or exceeds ANSI Grade 1 performance requirements, making it ideal for demanding applications. The Arrow AM19 Mortise Lock comes with two nickel silver keys and offers various keying options, including master keying and interchangeable cores. Backed by a five-year limited warranty, this lock ensures peace of mind and reliability for years to come.

Mortise Lock – Dormitory

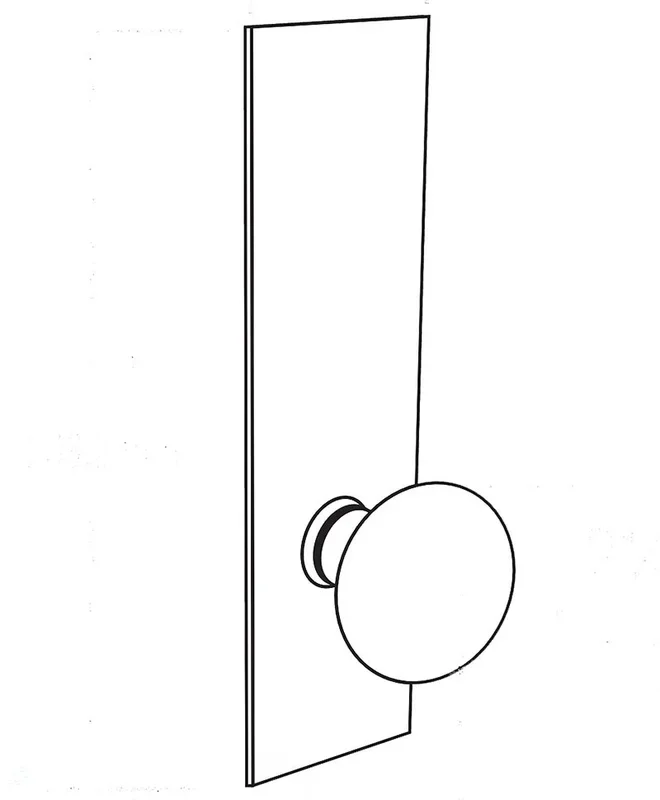

Dormitory, Exit Mortise Lock, T Knob, H Escutcheon, Satin Chrome

Arrow mortise locks are offered in a complete range of functions designed for commercial, institutional and industrial applications. They are engineered for strength and performance, and precisely manufactured to exacting standards. Arrow mortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. The lock case is made from heavy gauge steel, with zinc dichromate finish for corrosion resistance and it can be re-handed without disassembling the lock case. A wide selection of trim designs and functions are offered which meet or exceed the performance requirements of ANSI Grade 1.

The AM Series is engineered for strength and performance, and manufactured to exacting standards.

The Arrow AM Seriesmortise locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required.

• Handing – Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness – 1-3/4″ (4mm) standard.
• Backset – 2-3/4″ (70mm).
• Lockcase – Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm).
• Armored Front – Heavy gauge steel, 8″ (203 mm) x 1-1/4″ (32mm) x 3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).
• Faceplate – Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
• Latchbolt – Stainless steel, 2 piece mechanical with anti-friction insert. 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
• Auxiliary Latchbolt – 9/16″ (14mm) effective throw and 3/8″ (10mm) effective auxiliary latch deadlocking.
• Deadbolt – One-piece stainless steel, 19/32″ (15mm) x 1 1/4″ (32mm) x 1″ (25mm) throw.
• Hub – Knob: nickel steel, 5/16″ (8mm) and 9/32″. Lever: nickel steel, 5/16″ (8mm).
• Spacing – Center to center, hub to cylinder: 3-5/8″ (92mm). Center to center, hub to turnpiece 2-7/16″ (62 mm).
• Strike – Wrought brass, bronze or stainless steel. ANSI straight lip standard, 4-7/8″ (124mm) x 1-1/4″ (32mm) 1-1/8″ (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. Keys – Two nickel silver standard. Keying Features Available: • Master keying • Construction master keying • Visual key control • Concealed key control • Interchangeable core (IC) – Pointe, Choice Base, Plus, and Flex
• Warranty – Five-year limited.
• Standardized Case – One size case for uniform mortising.
• Reversibility – Locks are easily reversed for change of hand.
• Self Aligning Trim – Standard with rose trim. Eliminates bind, facilitates installation, gives support and saves labor.
• Designs – Broad spectrum of designs including lever handles, knobs for roses and escutcheons in architectural finishes.
• Complete Range of Functions – To meet all requirements.

Attributes

Ansi Function: F13 – Dormitory

Application: Complete Lock

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Finish: 626/US26D

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 19-Dormitory/Exit

Grade: Grade 1

Handing: Field Reversible

Keying: Keyed Different

Keys: Cut

Leverknob Design: T – Knob

Limited Warranty: 5 Years

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Pack Height: 4.5″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 239.34 in³

Pack Width: 5.75″

Pins: 6

Product Height: 8″

Product Length: 2.88″

Product Width: 2.25″

Roseescutcheon Design: H – Escutcheon

Screws: Combination

Series: AM Series Mortise Locks

Ship Weight: 6 lbs.

Std Keyway: A

Std Strike Height: 4-7/8″

Std Strike Number: 460

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
