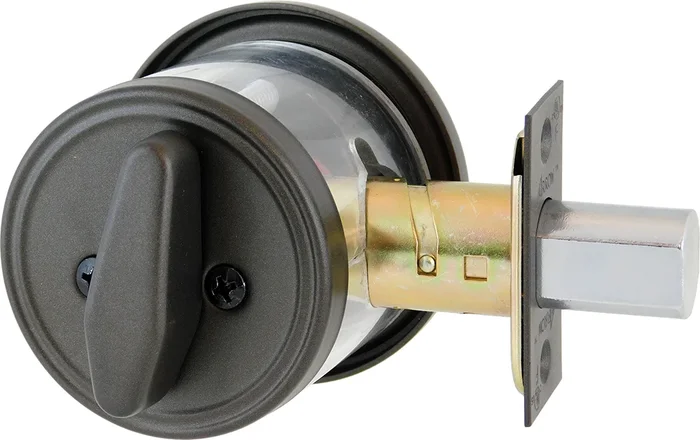

Arrow Lock Single Cylinder Deadbolt – Adjustable Backset, Grade 2, Dark Oxidized Satin Bronze

Description

Arrow Lock DBX61-613E-IC Lock Deadlock

The DBX Series is a Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low profile package. It is ideal for commercial common areas and residential use.

• Housing: Solid zinc cylinder housing
• Backset: 2-3/8″ (60.32 mm) to 2-3/4″ (69.85 mm), adjustable.
• Deadbolt fronts: 2-1/4″ (57.15 mm) x 1″ (25.40 mm). Plastic spacer supplied for 1-1/8″ (27.5mm) mortise.
• Doors: 1-3/8″ (34.925 mm) to 2″ (50 mm) thick standard.
• Strikes: 1/32″ (2.3mm) steel with wood frame reinforcer.
• Latch Bolt: 1″ (25mm) throw brass deadbolt with hardened, free spinning steel pin insert
• Cylinder, Standard: Solid brass, drilled for 6 pins, pinned to 5 for stock. Supplied with two nickel plated brass keys per keyed lock. Schlage CS keyway standard.
• Cylinder Options: Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Features

• Backset: Adjustable 2-3/8″ (60mm) to 2-3/4″ (70mm).
• Steel Strike: 1-1/16″ (27mm) x 2-3/4″ (70mm) x 0.05″ (0.13″ (3mm) thick with wood frame reinforcer).
• Latch Bolt: 1″ (25mm) throw steel deadbolt with hardened, free spinning, steel pin insert.
• Warranty: 1 Year.
• Standard cylinder unit – 1-3/8″ to 1-3/4″ (35mm to 44mm).
• Cylinder and Keys: Solid brass 6 pin cylinder. Two brass keys furnished standard. Arrow “A” or Schlage “C” keyway available. Optional SFIC lock prep available (less core).
• Packaging: 12 per case.
• Bolt Front: 2-1/4″ (57mm) x 1″ (25mm). Plastic spacer supplied for 1-1/8″ (29mm) mortise.
• Door Thickness:
• SFIC unit – 1-3/8″ to 2″ (35mm to 51mm).

Attributes

Alternate Codes: DBX61-613E-IC, DBX61613EIC

Backset: 2-3/8″-2-3/4″

Bolt Projection: 1 In.

Bolt Protection: 1 In.

Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Lock Sets, Single Cylinder, Single Cylinder (Commercial)

Certifications: A156.36, ANSI, BHMA, UL/cUL Listed 3 Hour

Cylinder Included: No

Cylinder Type: SFIC Cylinder

Deadbolt Functions: Single Cylinder x Thumb Turn

Door Application: Commercial Deadbolts

Door Bore Prep: Deadbolt Lockset 2.125in Prep

Door Bore Size: 2-1/8″

Door Thickness: 1-3/8″-2″

Door Thickness Max: 1-3/4″

Door Thickness Min: 1-3/8″

Finish: Oil Rubbed Bronze

Finish Code: 613E

Finish Color: Oil Rubbed Bronze

Finish : Dark Oxidized Satin Bronze Equivalent

Function: 61-Single Cylinder Deadbolt

Grade: Grade 2

Handing: Field Reversible, Non-Handed

Key Quantity: 2

Knob/ Lever Style: Inside Thumbturn

Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 2-1/4″ x 1″, 2-1/4″ x 1-1/8″

Latch Bolt Throw: 1″

Latch Bolt Type: Deadbolt

Latch Type: Deadbolt

Lock Category: Deadbolt

Manufacturer: Arrow Lock Company

Material: Solid, Zinc

Num Pins: 6/7

Pack Qty: 1

Pins: 6/7

Series: DBX

Std Latch Backset Dim: Adjustable 2-3/8 In. and 2-3/4 In.

Std Latch Type: Deadbolt

Strike Size: 2-3/4″ x 1-1/8″

Subtype: Deadlock

Supplier: Arrow

Type: LOCK SETS

Unit of Measure: Each

Resources

• Arrow DBX Series Deadbolts Cut Sheet
• Cut Sheet
• Cut Sheet
