Description

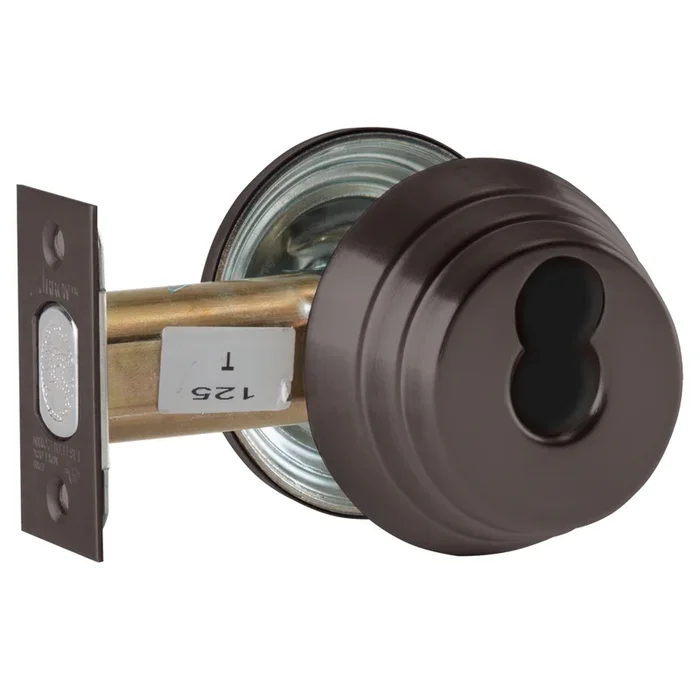

Arrow Lock E61 10BE IC Grade 2 Deadbolt
Arrow E61 10BE IC Grade 2 Deadbolt delivers outstanding security and durability for both commercial and residential applications. This Grade 2 single cylinder deadlock features a dark oxidized bronze finish, enhancing the aesthetic appeal while offering robust protection. Designed with a tamper-resistant rotating wrench-proof collar and a solid steel deadbolt with a hardened steel pin insert, the E61 is built to withstand unauthorized access attempts. The deadbolt boasts a 1-inch throw and is compatible with standard door thicknesses ranging from 1-3/8 inches to 1-3/4 inches. Installation is streamlined with concealed mounting screws and two 1/4-inch steel thru-bolts included for added strength. The E61 is field-reversible, making it adaptable to various door handing configurations. Standard with a #395 strike pack for both metal and wood doors, this deadlock is ANSI A156.5 compliant and Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors. The E61 accepts SFIC prep less cores, allowing for easy customization with other manufacturers’ cylinders, and is supplied with two keys. With its exceptional value and quality, the Arrow E61 10BE is a trusted choice among building professionals and homeowners alike.
Grade 2 Deadbolt
Grade 2 Single Cylinder Deadlock, SFIC Prep Less Core, Dark Oxidized Bronze Finish, Field Reversible
Arrow E Series deadlocks are unsurpassed for value, quality and durability.
Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
Housing:Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.
Thru-bolting:supplied with two 1/4″ (6.35 mm) steel thru-bolts.
Deadbolt:1″ (25.40 mm), solid steel deadbolt throw with hardened steel pin insert.
Backset:2-3/8″ (60.32 mm), 2-3/4″ (69.85 mm).
Deadbolt fronts:
- 2-1/4″ (57.15 mm) x 1″ (25.40 mm) standard for 2-3/8″ (60.32 mm) backset,
- 2-1/4″ (57.15 mm) x 1-1/8″ (28.57 mm) standard for 2-3/4″ (69.85 mm) backset. Drive-in deadbolts are available.
Doors:1-3/8″ (34.925 mm) to 1-3/4″ (44.45 mm) thick standard.
Strikes:Supplied standard with #395 strike pack (metal and wood).
Handing:All functions are reversible.
Cylinder, Standard:Solid brass, Arrow “A” deyway, drilled for 6 pins, pinned to 5 for stock. E41/42 is available 5 pin, Arrow AR and Schlage C only. Supplied with two keys. Available in Schlage CS keyway and other competitive keyways.**Product will accept other manufacturers’ cylinders but cannot be ordered with the product.
Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.
Finish:US3, US4, US5A, US10, US10B, US10BE, US15, US26, US26D, BSP
E41/42 is available in US3, US15 and US26D.
- ANSI A156.5, Auxiliary Locks, Grade 2
- Underwriters Laboratories (UL and CUL) listed for use on A label or lesser doors when used in conjunction with a rated primary latching device
Attributes
Ansi: A156.5
Bolt Projection: 1″ Deadbolt
Box Depth Fraction: 4
Box Height Fraction: 3
Box Width Fraction: 4
Commercial Residential: Commercial
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Conventional Cylinder
Door Thickness: 1-3/8″ – 1-3/4″
Finish: 613E/US10BE
Finish Family: Dark Bronze
Function: 61-Single Cylinder Deadbolt
Grade: Grade 2
Handing: Field Reversible
Installation: Commercial
Limited Warranty: 1 Year
Lock Face Size: 2-1/4 In. x 1 In.
Manufacturer Function: E61
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/8″
Pack Height: 3″
Pack Height 2: 5″
Pack Length: 4″
Pack Length 2: 13″
Pack Qty: 1
Pack Volume: 48 in³
Pack Volume 2: 812.5 in³
Pack Width: 4″
Pack Width 2: 12.5″
Screws: Combination
Series: Arrow E Series Deadbolts
Ship Weight: 1.7 lbs.
Std Latch Backset Dim: 2-3/8″
Std Latch Number: 141
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4″
Std Strike Number: 395 (345 & 346)
Std Strike Type: Flat Strike
Std Strike Width: 1-1/8″
Strike Dimensions: 2-3/4″ x 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
Resources
- Arrow E Series Deadbolts Cut Sheet
- E Series Cut Sheet
- Management Control Deadbolt Cut Sheet
- Occupancy Indicator Deadbolt Cut Sheet
