Anodized Aluminum Automatic Door Bottom with Nylon Brush Seal – NGP

Description

NGP 220WHA 36″ Anodized Aluminum Automatic Door Bottom with Nylon Brush Seal

NGP 220WHA 36″ Anodized Aluminum Automatic Door Bottom with Nylon Brush Seal offers exceptional performance and durability for commercial restroom applications. This door bottom is BHMA certified to ANSI/BHMA A156.22, ensuring it meets rigorous standards for quality and longevity with a 1,000,000 cycle test rating. Crafted from Aluminum Alloy 6063 with a T5 temper, it features a moisture-resistant nylon brush that excels in carpet applications, especially when no threshold is provided. The nylon brush is designed for superior abrasion resistance, flexibility, and memory, making it an excellent choice for high-traffic areas. The product operates effectively in a wide temperature range from -70°F to 425°F, ensuring reliability in various environments. With a maximum drop of 7/8″, the NGP 220WHA is handed-right hand supplied unless specified-and can be customized in length from a minimum of 11″ to a maximum of 60″. For optimal sealing capability, it is recommended to use this door bottom in conjunction with a threshold. The anodized aluminum finish not only enhances aesthetic appeal but also provides long-lasting protection against wear and tear.

Anodized Aluminum Automatic Door Bottom with Nylon Brush Seal

• Minimum Length 11″, Maximum Length 60″
• Door Bottom is Handed. Right Hand Supplied Unless Specified. Units Under 36″ Not Field Reversible. Please Specify Handing
• Aluminum Alloy 6063, T5 Temper
• Moisture-Resistant
• Mounts on Push Side of Door
• REACH and RoHS Compliant
• Use with a Threshold for Maximum Sealing Capability
• Retains Insecticides Well
• Nylon Brush Recommended for Carpet Applications Where no Threshold is Provided
• End Caps Furnished Standard
• Specify Exact Net Length Required to Avoid Field Sizing

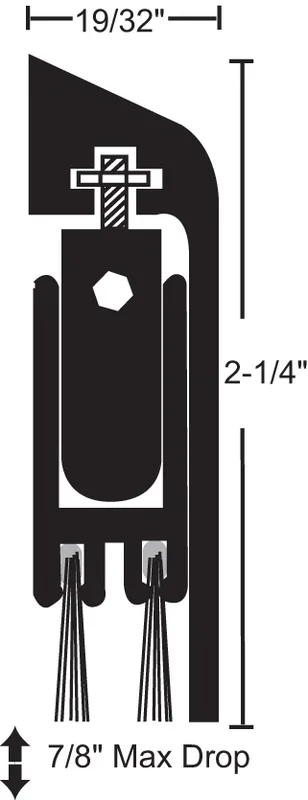

• 7/8″ Max Drop
• BHMA Certified to ANSI/BHMA A156.22, 1,000,000 Cycle Test-Grade 1
• BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
• Excellent Abrasion Resistance, Flexibility and Memory
• Anodized Aluminum
• Temperature Range -70°F to 425°F
• Nylon Brush is Black
• Not Effective Against Water Penetration
• 36″ and Longer May Be Cut up to 4″ in the Field; Under 36″ Should Not Be Cut in the Field, Order Net Length
• Synthetic Polymer: Polyamide

Attributes

Application: Nylon Brush Recommended for Carpet Applications Where no Threshold is Provided

BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold

Color: Nylon Brush is Black

Drop: 7/8″ Max Drop

Finish: Anodized Aluminum

Handing: Door Bottom is Handed. Right Hand Supplied Unless Specified. Units Under 36″ Not Field Reversible. Please Specify Handing

Length: 36″

Material: Synthetic Polymer: Polyamide

Moisture Resistant: YES

Resistance: Excellent Abrasion Resistance, Flexibility and Memory

Ro HS: REACH and RoHS Compliant

Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-1: POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Temperature Range: Temperature Range -70°F to 425°F
