Description

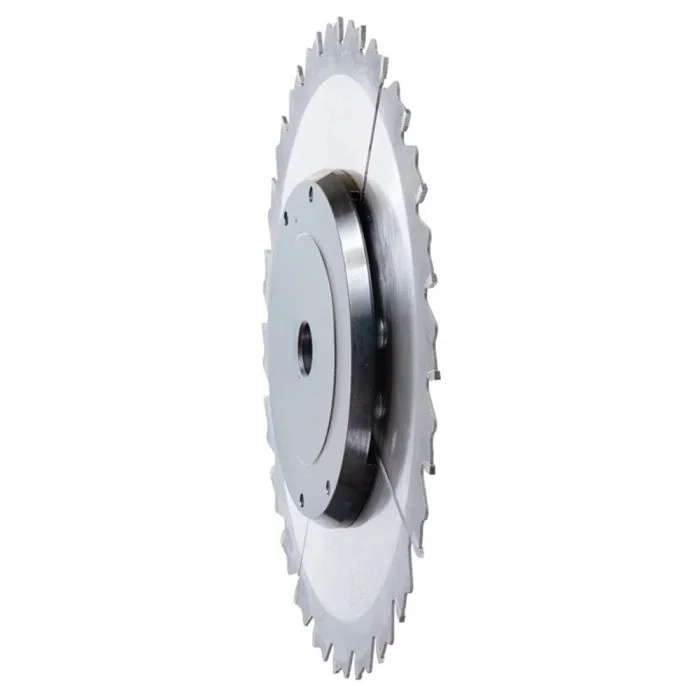

The new 24 tooth adjustable thin kerf dado set allows the user to cut precise dadoes from 1/16 inch to 1/4 inch wide. Set contains one split steel hub with a 5/8 inch bore and two different saw blades that when shims are added, enables you to achieve a variety of dado widths. The 1/16 inch blade 61381 will give you a minimum kerf of 1/16 inch (0.062 inch) to a maximum of 1/8 inch (0.125 inch) with shims while the 1/8 inch blade 61382 will give you a minimum kerf of 1/8 inch (0.125 inch) to a maximum of 1/4 inch (0.250 inch) with shims.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868561381 |
| Application |
Hard Wood, Soft Wood, MDF, Chipboard, Melamine |
| Arbor Size |
5/8″ |
| Blade Diameter |
8″ |
| Blade Material |
Carbide Tipped |
| Rake Angle |
-10 Deg |
| Tooth Grind |
Alternate Top Bevel (ATB) |
| Number of Teeth |
24 |
| ATB Angle |
15 degrees |
| Maximum Groove Depth |
1-1/8″ |
| Blade Thickness (Kerf) |
1/16″ – 1/8″ |
