Description

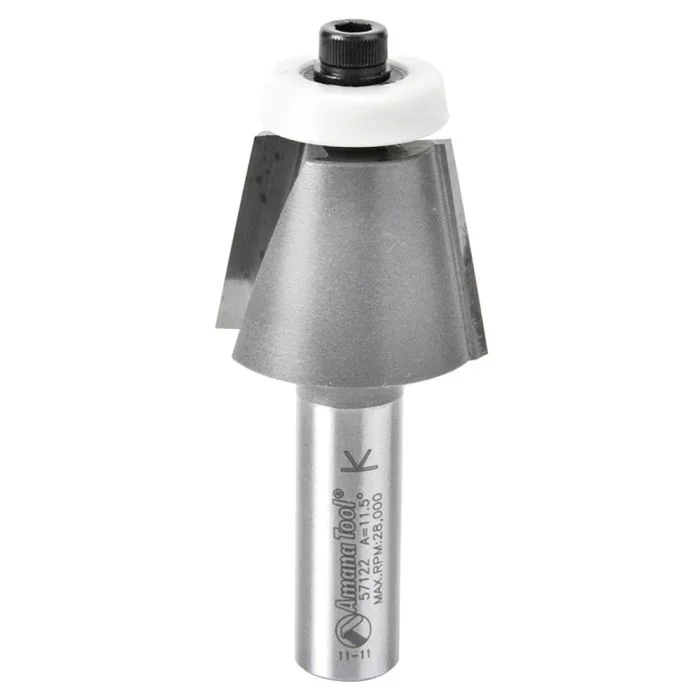

The bits prepare and/or finish counter-top edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the counter-top edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian sink and bowl #’s 802S, 804S, 805S, 809S and 871S.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868557122 |
| Features |
- Carbide Tipped
- Industrial Quality
|
| Replacement Bearing |
47726 |
| Type |
Undermount Bowl |
| A |
1/2″, 3/4″ |
| Angle(a°) |
11.5 Deg |
| Ball Bearing |
Lower |
| Cutter Height(B) |
15/16″ |
| Diameter(D) |
1″ |
| Flutes |
2 |
| Material |
Carbide Tip |
| Overall Length(L) |
3″ |
| Shank(d) |
1/2″ |
| Tool No. |
57122 |
| Style |
Bevel |
| Diameter(D) |
1 1/4″ |
| Cutter Height(B) |
15/16″ |
| Shank(d) |
1/2″ |
| Flutes |
2 |
| Angle(a°) |
11.5 Deg |
| Replacement Bearing |
47726 |
| A |
1/2″ – 3/4″ |
| Max. RPM |
28,000 RPM |
| Overall Length(L) |
3″ |
