Description

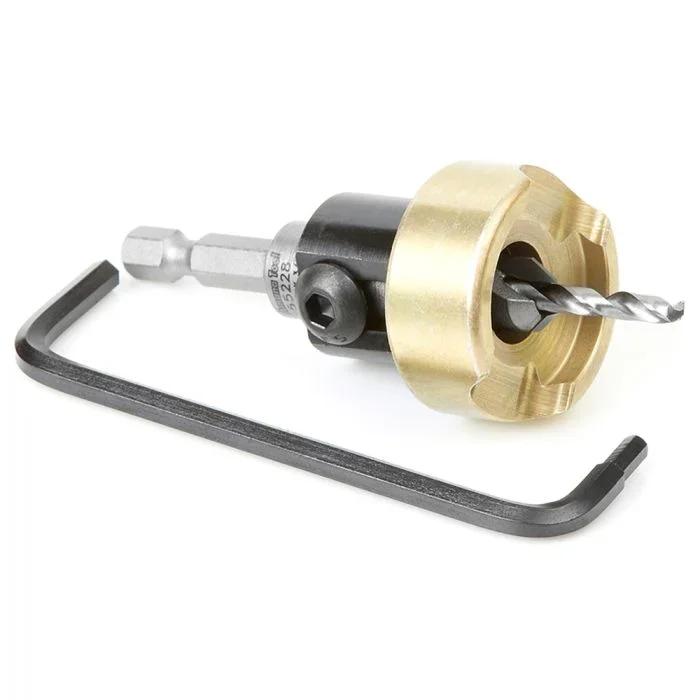

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.
It also has an open space to allow for chip evacuation.
The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.
Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 00738685552285 |
| Features |
|
| Includes | Slow Spiral, High-Speed-Steel (HSS) M2 Fully Ground Drill Bit |
| Application | Excellent for Drilling Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials, High Density, Polyethylene (HDPE), Acrylic |
| Drill Bit Diameter | 3/8″ |
| Drill Bit Length | 2 5/8″ |
| Drill Bit Point Angle | 49 Deg |
| Shank Diameter | 1/4″ |
| Type | Countersink with Depth Stop |
|---|---|
| Cutting Height (B) | 3/64″ – 3/8″ |
| Drill Din | 1897 |
| Wood Screw Size | 6 |
| Drill Bit Diameter (D1) | 9/64″ |
| Replacement Drill | 630-228 |
| Replacement Countersink | 55273 |
| Use with Plug Cutter (Optional) | 55220 |
| Angle (a1°) | 82 Deg |
