Description

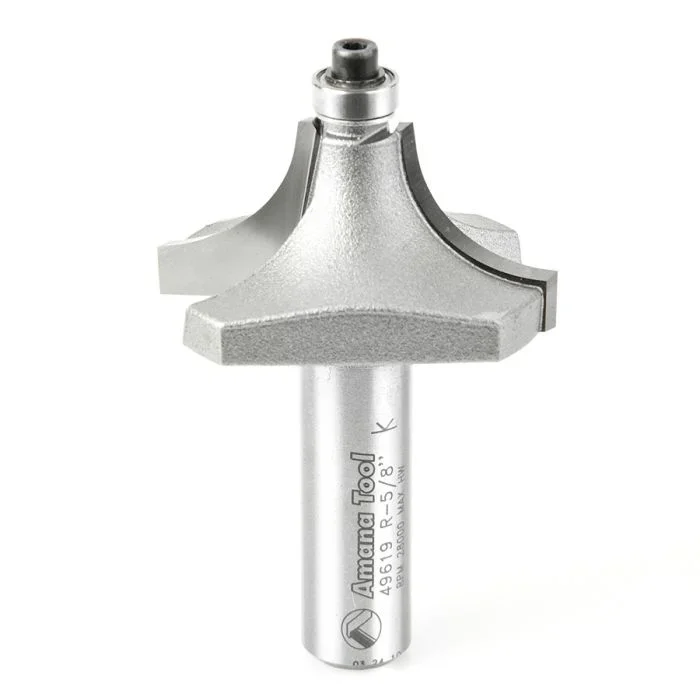

Cut a quarter-round shape bounded by fillets, known as a bead, in one pass by this bit. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed into a corner rounding bit by changing the bearing.
More Information
| Manufacturer |
Amana Tool Corp. |
| Condition |
New |
| UPC |
73868589619 |
| Includes |
47702 Bearing |
| PDFs |
- 47739 Catalog
- 47708 Catalog
|
| Replacement Bearing |
1-3/4 |
| Type |
Router Bit |
| Ball Bearing |
1 3/4″ |
| Cutter Height(B) |
1 3/4″ |
| Cutting Diameter(D) |
1 3/4″ |
| Diameter(D) |
1 3/4″ |
| Flutes |
2 |
| Length(L) |
2 3/4″ |
| Material |
Carbide Tip |
| Overall Length(L) |
1 3/4″ |
| Radius |
5/8″ |
| Radius(R) |
1 3/4″ |
| RPM |
28,000 RPM |
| Shank |
1/2″ |
| Shank(d) |
1 3/4″ |
| Tool No. |
49619 |
| Diameter(D) |
1-3/4″ |
| Cutter Height(B) |
7/8″ |
| Shank(d) |
1/2″ |
| Overall Length(L) |
2-3/4″ |
| Flutes |
2 |
| Replacement Bearing |
47702 |
| Diameter(D1) |
3/8″ |
| Radius(R) |
5/8″ |
| Max. RPM |
28,000 RPM |
